View larger
Images are for illustrative purposes only. Please refer to data sheet for details
XTPPN4CH 184665 Y7-184665 EATON ELECTRIC xEnergy No Description
XTPPN4CH
184665
Y7-184665
EATON - MOELLER
1 Pcs.
xEnergy - No Description
XTPPN4CH

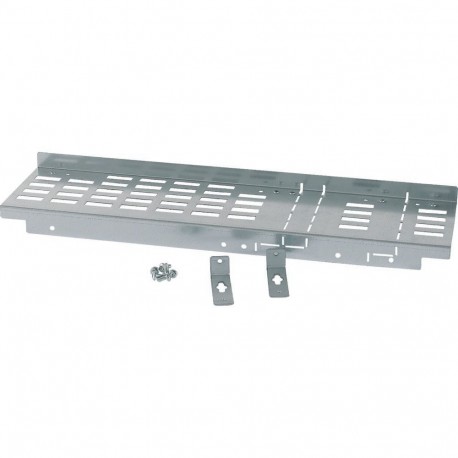

Horizontal NZM4/cable connection partition
For horizontal partitions within a distribution board, mounted on base frame, knockouts for cable conduits, width 400mm
Automation > Divider panel (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Horizontal NZM4/cable connection partition
For horizontal partitions within a distribution board, mounted on base frame, knockouts for cable conduits, width 400mm
Technical data ETIM 7.0
Cabinet enclosures (EG000011) / Divider panel (switchgear cabinet) (EC002525)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Panel (electrical cabinet) / Divider panel (electrical cabinet) ([email protected] [AKE424014])
Modular spacing
0 mm
Suitable for enclosure building width
0 mm
Suitable for enclosure building depth
0 mm
Width
489 mm
Height
49 mm
Material
Steel
Surface finishing
Galvanized
Colour
Natural colour
RAL-number
0
With cable entry
Yes
Number of height units
0
With lock
No
Construction type
Assembly kit
For internal separation form 2a
No
For internal separation form 2b
No
For internal separation form 3a
Yes
For internal separation form 3b
Yes
For internal separation form 4a
Yes
For internal separation form 4b
Yes
| Feature Name | Feature Value |
|---|---|
| Modular spacing (EF000394) | 12.5 mm |
| Suitable for enclosure building width (EF000326) | 0 mm |
| Suitable for enclosure building depth (EF000327) | 800 mm |
| Width (EF000008) | 489 mm |
| Height (EF000040) | 49 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Galvanised |
| Colour (EF000007) | Other |
| RAL-number (EF000116) | 0 |
| With cable entry (EF000325) | Yes |
| Number of height units (EF003561) | 0 |
| With lock (EF006306) | No |
| Construction type (EF000767) | Assembly kit |
| For internal separation form 2a (EF009586) | No |
| For internal separation form 2b (EF009587) | No |
| For internal separation form 3a (EF009588) | Yes |
| For internal separation form 3b (EF009589) | Yes |
| For internal separation form 4a (EF009590) | Yes |
| For internal separation form 4b (EF009591) | Yes |
