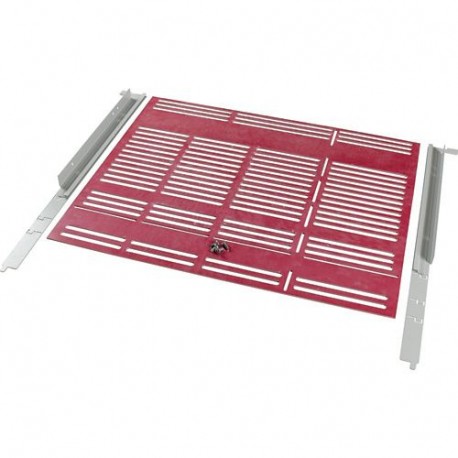

EATON - MOELLER XTPPIX40BH XTPPIX40BH 173511 Y7-173511 EATON ELECTRIC Partition horizontal IZMX View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XTPPIX40BH 173511 Y7-173511 EATON ELECTRIC Partition horizontal IZMX

XTPPIX40BH

173511

Y7-173511

EATON - MOELLER

1 Pcs.

Partition horizontal IZMX XTPPIX40BH Eaton xEnergy Main LV systems LV switchgear. Partition horizontal between incoming/outgoing contacts of the circuit breaker, IZMX40 Partition horizontal between incoming/outgoing contacts of the circuit breaker, IZMX40

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
173511
Model Code
XTPPIX40BH
EAN
4015081699186
Product Length/Depth
518 mm
Product Height
33 mm
Product Width
656 mm
Product Weight
1.86 kg
Compliances
RoHS conform

Product specifications

Construction type
Assembly kit
Surface finishing
Untreated
Color
Red
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
800 mm
Suitable for enclosure building width
600 mm
Material
Plastic
Suitable for
Internal separation form 2b
Internal separation form 2a
Internal separation form 3b
Internal separation form 4a
Internal separation form 4b
Internal separation form 3a

ETIM for 173511 Cabinets and enclosures (EC002525)
Feature Name Feature Value
Modular spacing (EF000394) 12.5 mm
Suitable for enclosure building width (EF000326) 600 mm
Suitable for enclosure building depth (EF000327) 800 mm
Width (EF000008) 656 mm
Height (EF000040) 33 mm
Material (EF002169) Plastic
Surface finishing (EF006569) Untreated
Colour (EF000007) Red
RAL-number (EF000116) 0
With cable entry (EF000325) No
Number of height units (EF003561) 0
With lock (EF006306) No
Construction type (EF000767) Assembly kit
For internal separation form 2a (EF009586) Yes
For internal separation form 2b (EF009587) Yes
For internal separation form 3a (EF009588) Yes
For internal separation form 3b (EF009589) Yes
For internal separation form 4a (EF009590) Yes
For internal separation form 4b (EF009591) Yes
