View larger
Images are for illustrative purposes only. Please refer to data sheet for details

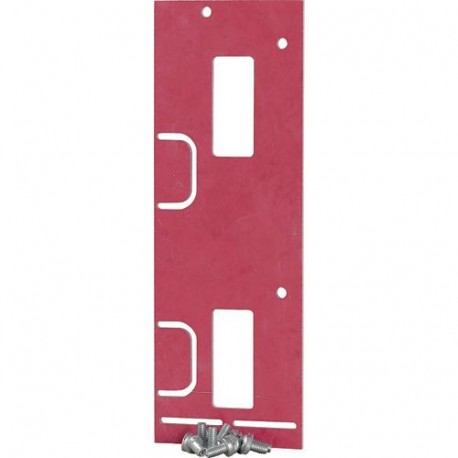

XTPPIX16BV3PN 173508 Y7-173508 EATON ELECTRIC Partition horizontal IZMX
XTPPIX16BV3PN
173508
Y7-173508
EATON - MOELLER
1 Pcs.
Partition horizontal IZMX
XTPPIX16BV3PN
Eaton xEnergy Main LV systems LV switchgear. Partition of the neutral conductor connection, for IZMX16
Partition of the neutral conductor connection, for IZMX16
Automation > Divider panel (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
173508
Model Code
XTPPIX16BV3PN
EAN
4015081699155
Product Length/Depth
10 mm
Product Height
270 mm
Product Width
95 mm
Product Weight
0.17 kg
Compliances
RoHS conform
Product specifications
Construction type
Individual part
Fitted with:
Cable entry
Surface finishing
Untreated
Color
Red
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
800 mm
Suitable for enclosure building width
0 mm
Material
Plastic
Suitable for
Internal separation form 4a
Internal separation form 4b
Internal separation form 4b
| Feature Name | Feature Value |
|---|---|
| Modular spacing (EF000394) | 12.5 mm |
| Suitable for enclosure building width (EF000326) | 0 mm |
| Suitable for enclosure building depth (EF000327) | 800 mm |
| Width (EF000008) | 95 mm |
| Height (EF000040) | 270 mm |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Untreated |
| Colour (EF000007) | Red |
| RAL-number (EF000116) | 0 |
| With cable entry (EF000325) | Yes |
| Number of height units (EF003561) | 0 |
| With lock (EF006306) | No |
| Construction type (EF000767) | Individual part |
| For internal separation form 2a (EF009586) | No |
| For internal separation form 2b (EF009587) | No |
| For internal separation form 3a (EF009588) | No |
| For internal separation form 3b (EF009589) | No |
| For internal separation form 4a (EF009590) | Yes |
| For internal separation form 4b (EF009591) | Yes |
