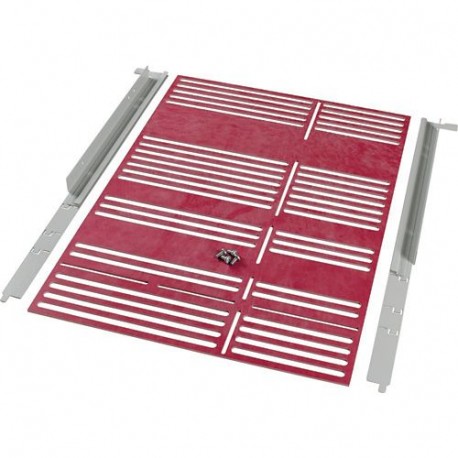

EATON - MOELLER XTPPIX16BH XTPPIX16BH 173510 Y7-173510 EATON ELECTRIC Partition horizontal IZMX View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XTPPIX16BH 173510 Y7-173510 EATON ELECTRIC Partition horizontal IZMX

XTPPIX16BH

173510

Y7-173510

EATON - MOELLER

1 Pcs.

Partition horizontal IZMX XTPPIX16BH Eaton xEnergy Main LV systems LV switchgear. Partition horizontal between incoming/outgoing contacts of the circuit breaker, IZMX16 Partition horizontal between incoming/outgoing contacts of the circuit breaker, IZMX16

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
173510
Model Code
XTPPIX16BH
EAN
4015081699179
Product Length/Depth
621 mm
Product Height
33 mm
Product Width
456 mm
Product Weight
1.66 kg
Compliances
RoHS conform

Product specifications

Construction type
Assembly kit
Surface finishing
Untreated
Color
Red
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
800 mm
Suitable for enclosure building width
425 mm
Material
Plastic
Suitable for
Internal separation form 3a
Internal separation form 4a
Internal separation form 2a
Internal separation form 3b
Internal separation form 2b
Internal separation form 4b

ETIM for 173510 Cabinets and enclosures (EC002525)
Feature Name Feature Value
Modular spacing (EF000394) 12.5 mm
Suitable for enclosure building width (EF000326) 425 mm
Suitable for enclosure building depth (EF000327) 800 mm
Width (EF000008) 456 mm
Height (EF000040) 33 mm
Material (EF002169) Plastic
Surface finishing (EF006569) Untreated
Colour (EF000007) Red
RAL-number (EF000116) 0
With cable entry (EF000325) No
Number of height units (EF003561) 0
With lock (EF006306) No
Construction type (EF000767) Assembly kit
For internal separation form 2a (EF009586) Yes
For internal separation form 2b (EF009587) Yes
For internal separation form 3a (EF009588) Yes
For internal separation form 3b (EF009589) Yes
For internal separation form 4a (EF009590) Yes
For internal separation form 4b (EF009591) Yes
