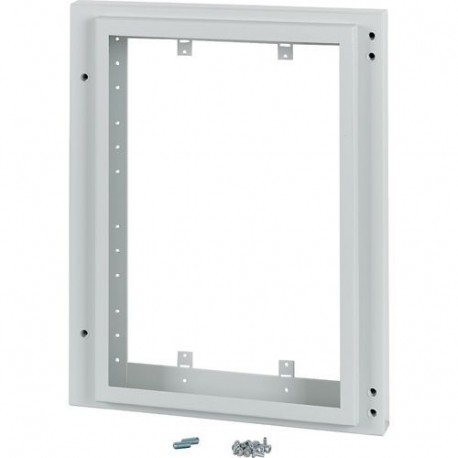

EATON - MOELLER XTMPIX16AF55 XTMPIX16AF55 182111 Y7-182111 EATON ELECTRIC Adapter for bistidor IZMX16 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XTMPIX16AF55 182111 Y7-182111 EATON ELECTRIC Adapter for bistidor IZMX16

XTMPIX16AF55

182111

Y7-182111

EATON - MOELLER

1 Pcs.

Adapter for bistidor IZMX16 XTMPIX16AF55 Eaton xEnergy Main LV systems LV switchgear. Adapterframe for IZMX16, grey Gray adapter frame for shroud; RAL 7035; designed for the IZMX40 series / fixed mounting and withdrawable

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller XTMPIX16AF55 adapter serves as a critical mounting interface to securely fit circuit breakers within standard industrial switchboard frameworks. Structural adapters simplify the integration of specialized electrical protective devices into complex power distribution architectures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for enclosure building width (EF000326): 0 mm
  • Suitable for enclosure building height (EF009583): 2000 mm
  • Suitable for enclosure building depth (EF000327): 800 mm
  • Width (EF000008): 312 mm
  • Height (EF000040): 390 mm
  • Depth (EF000049): 48 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Metal
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
182111
Model Code
XTMPIX16AF55
EAN
4015081769773
Product Length/Depth
48 mm
Product Height
390 mm
Product Width
312 mm
Product Weight
1.82 kg
Compliances
RoHS conform

Product specifications

Color
Gray
Load capacity - max
0 kg
RAL-number
7035
Suitable for enclosure building height
2000 mm
Suitable for enclosure building length/depth
800 mm
Suitable for enclosure building width
0 mm
Material
Metal
Model
Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
