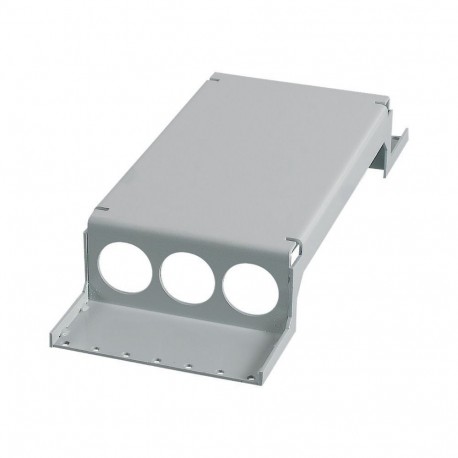

EATON - MOELLER XSPTV40808 XSPTV40808 178060 Y7-178060 EATON ELECTRIC Top Panel, IP42, B 800mm D 800mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XSPTV40808 178060 Y7-178060 EATON ELECTRIC Top Panel, IP42, B 800mm D 800mm

XSPTV40808

178060

Y7-178060

EATON - MOELLER

1 Pcs.

Top Panel, IP42, B=800mm D=800mm XSPTV40808 Eaton xEnergy Main LV systems LV switchgear. Sheet steel top plate, IP 42, width 800 mm, depth 800 mm, powder-spray painted, RAL 7035, ventilated Sheet steel top plate, IP 42, width 800 mm, depth 800 mm, powder-spray painted, RAL 7035, ventilated

Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Eaton Moeller top panel, designated by part number XSPTV40808, is engineered to seal the upper frame of modular industrial enclosures while providing integrated de-aeration for internal climate management. Protective top covers ensure that switchgear housings maintain their structural integrity and environmental specifications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for roof planking (EF009584): Yes
  • Suitable for bottom planking (EF009585): Yes
  • Width (EF000008): 707 mm
  • Height (EF000040): 89 mm
  • Depth (EF000049): 682 mm
  • Suitable for enclosure building width (EF000326): 800 mm
  • Suitable for enclosure building depth (EF000327): 800 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035
  • With de-aeration (EF001161): Yes
  • Suitable for outdoor set-up (EF005774): No
  • With cable entry (EF000325): No

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
178060
Model Code
XSPTV40808
EAN
4015081733354
Product Length/Depth
682 mm
Product Height
89 mm
Product Width
707 mm
Product Weight
6.012 kg
Compliances
RoHS conform

Product specifications

Fitted with:
De-aeration
Surface finishing
Powder coating
Color
Gray
RAL-number
7035
Suitable for enclosure building length/depth
800 mm
Suitable for enclosure building width
800 mm
Material
Steel
Suitable for
Roof planking
Bottom planking
