EATON - MOELLER XSMRDB08 XSMRDB08 184668 Y7-184668 EATON ELECTRIC xEnergy No Description View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XSMRDB08 184668 Y7-184668 EATON ELECTRIC xEnergy No Description

XSMRDB08

184668

Y7-184668

EATON - MOELLER

1 Pcs.

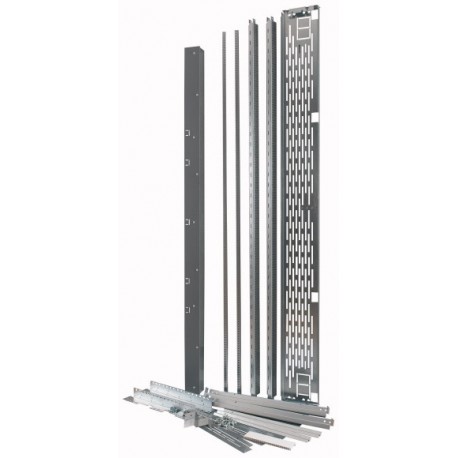

xEnergy - No Description XSMRDB08 Mounting kit XR-MCCB-PIFT D=800mm Mounting frame consisting of two mounting sections, support and cross sections, includes screw parts, depth: 800 mm

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Configured as an Eaton Moeller XSMRDB08 mounting kit, this hardware package delivers internal framing support for modular xEnergy enclosure assemblies. Such kits are routinely deployed by electrical engineers to construct internal structural matrices for switchboards and control centers.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Mounting kit
  • Suitable for enclosure building width (EF000326): 0 mm
  • Suitable for enclosure building height (EF009583): 2000 mm
  • Suitable for enclosure building depth (EF000327): 800 mm
  • Width (EF000008): 640 mm
  • Height (EF000040): 1980 mm
  • Depth (EF000049): 668 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Metal
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 0

More info

▲
Mounting kit XR-MCCB-PIFT D=800mm
Mounting frame consisting of two mounting sections, support and cross sections, includes screw parts, depth: 800 mm

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Component for installation (switchgear cabinet) (EC002620)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Elements for switching cabinet, housing, rack / Component for installation (electrical cabinet) ([email protected] [ACN627011])
Model
Mounting kit
Suitable for enclosure building width
0 mm
Suitable for enclosure building height
2000 mm
Suitable for enclosure building depth
800 mm
Width
640 mm
Height
1980 mm
Depth
668 mm
Max. load capacity
0 kg
Material
Metal
Colour
Natural colour
RAL-number
0
