EATON - MOELLER XSMRDB06 XSMRDB06 184667 Y7-184667 EATON ELECTRIC xEnergy No Description View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XSMRDB06 184667 Y7-184667 EATON ELECTRIC xEnergy No Description

XSMRDB06

184667

Y7-184667

EATON - MOELLER

1 Pcs.

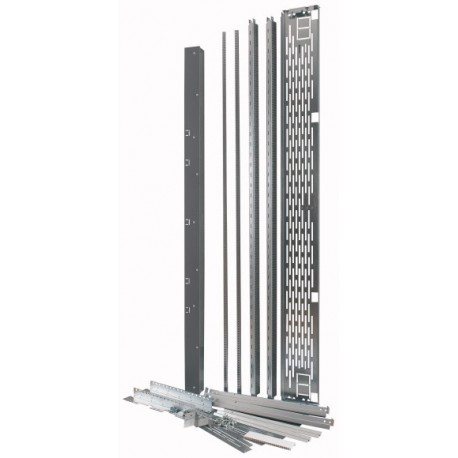

xEnergy - No Description XSMRDB06 Mounting kit XR-MCCB-PIFT D=600mm Mounting frame consisting of two mounting sections, support and cross sections, includes screw parts, depth: 600 mm

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Eaton Moeller XSMRDB06 184667 Y7-184667 EATON ELECTRIC xEnergy No Description serves as an internal structural mounting kit engineered for organizing and supporting electrical distribution components within modular switchgear systems. Such framework kits are essential for creating rigid, segmented equipment arrangements in industrial enclosure lineups. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Mounting kit
  • Suitable for enclosure building width (EF000326): 0 mm
  • Suitable for enclosure building height (EF009583): 2000 mm
  • Suitable for enclosure building depth (EF000327): 600 mm
  • Width (EF000008): 640 mm
  • Height (EF000040): 1980 mm
  • Depth (EF000049): 468 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Metal
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 0

More info

▲
Mounting kit XR-MCCB-PIFT D=600mm
Mounting frame consisting of two mounting sections, support and cross sections, includes screw parts, depth: 600 mm

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Component for installation (switchgear cabinet) (EC002620)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Elements for switching cabinet, housing, rack / Component for installation (electrical cabinet) ([email protected] [ACN627011])
Model
Mounting kit
Suitable for enclosure building width
0 mm
Suitable for enclosure building height
2000 mm
Suitable for enclosure building depth
600 mm
Width
640 mm
Height
1980 mm
Depth
468 mm
Max. load capacity
0 kg
Material
Metal
Colour
Natural colour
RAL-number
0

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
