View larger
Images are for illustrative purposes only. Please refer to data sheet for details
XPRCSB08 184719 Y7-184719 EATON ELECTRIC xEnergy No Description
XPRCSB08
184719
Y7-184719
EATON - MOELLER
1 Pcs.
xEnergy - No Description
XPRCSB08

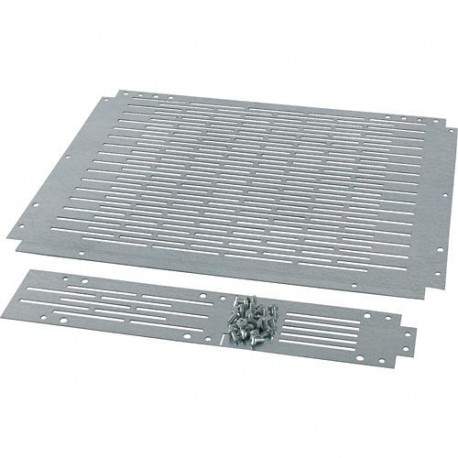

Horizontal partition below XR-MCCB_PIFT, depth = 800 mm
Horizontal partition underneath XR-MCCB-PIFT; depth: 800 mm, sheet steel, powder-spray painted RAL 7035
Automation > Divider panel (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
184719
Model Code
XPRCSB08
EAN
4015081787531
Product Length/Depth
439 mm
Product Height
3 mm
Product Width
1095 mm
Product Weight
1.3 kg
Compliances
RoHS conform
Product specifications
Construction type
Assembly kit
Surface finishing
Galvanized
Color
Gray
Modular spacing
12.5 mm
Number of height units
0
RAL-number
7035
Suitable for enclosure building length/depth
800 mm
Suitable for enclosure building width
0 mm
Material
Steel
Suitable for
Internal separation form 2b
Internal separation form 3a
Internal separation form 3b
Internal separation form 4b
Internal separation form 2a
Internal separation form 4a
Internal separation form 3a
Internal separation form 3b
Internal separation form 4b
Internal separation form 2a
Internal separation form 4a
| Feature Name | Feature Value |
|---|---|
| Modular spacing (EF000394) | 12.5 mm |
| Suitable for enclosure building width (EF000326) | 0 mm |
| Suitable for enclosure building depth (EF000327) | 800 mm |
| Width (EF000008) | 1095 mm |
| Height (EF000040) | 3 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Galvanised |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| With cable entry (EF000325) | No |
| Number of height units (EF003561) | 0 |
| With lock (EF006306) | No |
| Construction type (EF000767) | Assembly kit |
| For internal separation form 2a (EF009586) | Yes |
| For internal separation form 2b (EF009587) | Yes |
| For internal separation form 3a (EF009588) | Yes |
| For internal separation form 3b (EF009589) | Yes |
| For internal separation form 4a (EF009590) | Yes |
| For internal separation form 4b (EF009591) | Yes |
