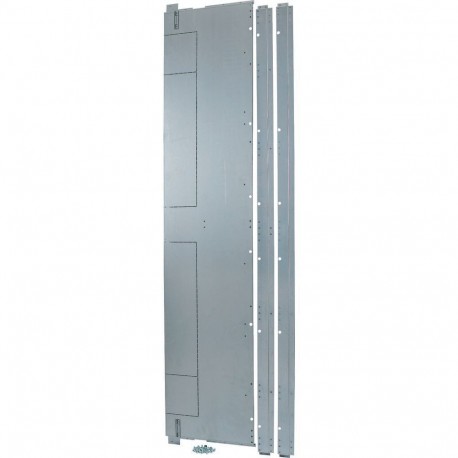

EATON - MOELLER XPRCD2008 XPRCD2008 184681 Y7-184681 EATON ELECTRIC xEnergy No Description View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XPRCD2008 184681 Y7-184681 EATON ELECTRIC xEnergy No Description

XPRCD2008

184681

Y7-184681

EATON - MOELLER

1 Pcs.

xEnergy - No Description XPRCD2008 Separation, cable connection/main busbar area, for cabling box, D = 600 mm Accessories for XR, end-to-end mounting plate / partition for cable connection area, section width: 600 mm, height: 2000 mm. For mounting terminals / contact blocks in cable connection area; serves as a partition between the cable connection area and main busbar area at the same time.

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Separation, cable connection/main busbar area, for cabling box, D = 600 mm
Accessories for XR, end-to-end mounting plate / partition for cable connection area, section width: 600 mm, height: 2000 mm. For mounting terminals / contact blocks in cable connection area; serves as a partition between the cable connection area and main busbar area at the same time.

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Divider panel (switchgear cabinet) (EC002525)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Panel (electrical cabinet) / Divider panel (electrical cabinet) ([email protected] [AKE424014])
Modular spacing
25 mm
Suitable for enclosure building width
0 mm
Suitable for enclosure building depth
800 mm
Width
37 mm
Height
1945 mm
Material
Steel
Surface finishing
Galvanized
Colour
Grey
RAL-number
7035
With cable entry
Yes
Number of height units
0
With lock
No
Construction type
Individual part
For internal separation form 2a
No
For internal separation form 2b
No
For internal separation form 3a
Yes
For internal separation form 3b
Yes
For internal separation form 4a
Yes
For internal separation form 4b
Yes

ETIM for 184681 Cabinets and enclosures (EC002525)
Feature Name Feature Value
Modular spacing (EF000394) 25 mm
Suitable for enclosure building width (EF000326) 0 mm
Suitable for enclosure building depth (EF000327) 800 mm
Width (EF000008) 37 mm
Height (EF000040) 1945 mm
Material (EF002169) Steel
Surface finishing (EF006569) Galvanised
Colour (EF000007) Grey
RAL-number (EF000116) 7035
With cable entry (EF000325) Yes
Number of height units (EF003561) 0
With lock (EF006306) No
Construction type (EF000767) Individual part
For internal separation form 2a (EF009586) No
For internal separation form 2b (EF009587) No
For internal separation form 3a (EF009588) Yes
For internal separation form 3b (EF009589) Yes
For internal separation form 4a (EF009590) Yes
For internal separation form 4b (EF009591) Yes
