View larger
Images are for illustrative purposes only. Please refer to data sheet for details

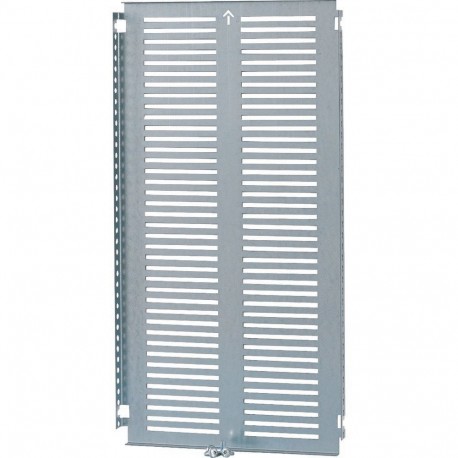

XPRCCV0525035 184656 Y7-184656 EATON ELECTRIC xEnergy No Description
XPRCCV0525035
184656
Y7-184656
EATON - MOELLER
1 Pcs.
xEnergy - No Description
XPRCCV0525035
Eaton xEnergy Main LV systems LV switchgear. Vertical partition, cover, XR-MCCB, 0525035
Vertical partition, blanking panels with module height, one blanking plate per module, for cable connection area width of 350 mm, section width of 1000 mm, height of 50 mm
Automation > Cover / infill panel / identification strip (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
184656
Model Code
XPRCCV0525035
EAN
4015081786909
Product Length/Depth
19 mm
Product Height
515 mm
Product Width
270 mm
Product Weight
1 kg
Compliances
RoHS conform
Product specifications
RAL-number
0
Color
Stainless steel
Material
Metal
Mounting position
In the field
Model
Cover
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Cover |
| Width (EF000008) | 270 mm |
| Height (EF000040) | 515 mm |
| Depth (EF000049) | 19 mm |
| Mounting position (EF001664) | In the field |
| Material (EF002169) | Metal |
| Colour (EF000007) | Stainless steel |
| RAL-number (EF000116) | 0 |
