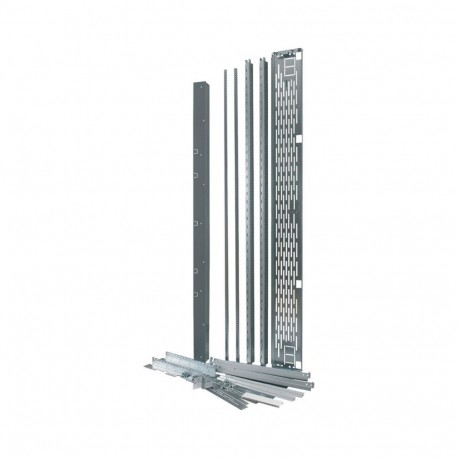

EATON - MOELLER XPRCC2008 XPRCC2008 184643 Y7-184643 EATON ELECTRIC xEnergy No Description View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XPRCC2008 184643 Y7-184643 EATON ELECTRIC xEnergy No Description

XPRCC2008

184643

Y7-184643

EATON - MOELLER

1 Pcs.

xEnergy - No Description XPRCC2008 Separating partition, sideways, for cable connection area, depth 800mm Side partition for cable connection area. Depth: 800 mm; in the case of British Standard applications, partitioning into individual terminal areas, requiring a separate cable section

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller XPRCC2008 xEnergy structural component provides internal framing and modular support within industrial power distribution enclosures. Structural profiles and bars are standard mechanical elements used to configure robust internal frameworks for electrical switchboards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 25 mm
  • Suitable for enclosure building width (EF000326): 0 mm
  • Suitable for enclosure building depth (EF000327): 800 mm
  • Width (EF000008): 19 mm
  • Height (EF000040): 1905 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Galvanised
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 0
  • With cable entry (EF000325): No
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Individual part
  • For internal separation form 2a (EF009586): No
  • For internal separation form 2b (EF009587): No
  • For internal separation form 3a (EF009588): No

More info

▲
Separating partition, sideways, for cable connection area, depth 800mm
Side partition for cable connection area. Depth: 800 mm; in the case of British Standard applications, partitioning into individual terminal areas, requiring a separate cable section

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Divider panel (switchgear cabinet) (EC002525)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Panel (electrical cabinet) / Divider panel (electrical cabinet) ([email protected] [AKE424014])
Modular spacing
25 mm
Suitable for enclosure building width
0 mm
Suitable for enclosure building depth
800 mm
Width
0 mm
Height
0 mm
Material
Steel
Surface finishing
Galvanized
Colour
Grey
RAL-number
0
With cable entry
No
Number of height units
0
With lock
No
Construction type
Individual part
For internal separation form 2a
No
For internal separation form 2b
No
For internal separation form 3a
No
For internal separation form 3b
No
For internal separation form 4a
No
For internal separation form 4b
Yes
