View larger
Images are for illustrative purposes only. Please refer to data sheet for details

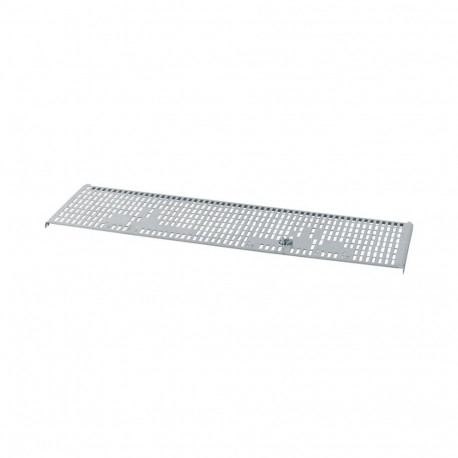

XPFMMR08-BF 192706 Y7-192706 EATON ELECTRIC Compartmentalization for area devices
XPFMMR08-BF
192706
Y7-192706
EATON - MOELLER
1 Pcs.
Compartmentalization for area devices
XPFMMR08-BF
Eaton xEnergy Main LV systems LV switchgear. Horizontal partition, Butterfly, W=800mm
Horizontal partition for Butterfly, partition between feeder copper conductor and connection copper conductor on main busbar, section width 800 mm, section depth 600 mm
Automation > Divider panel (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
192706
Model Code
XPFMMR08-BF
EAN
4015081934355
Product Length/Depth
228.5 mm
Product Height
12 mm
Product Width
710 mm
Product Weight
0.9 kg
Compliances
RoHS conform
Product specifications
Construction type
Individual part
Surface finishing
Galvanized
Color
Gray
Modular spacing
25 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
800 mm
Suitable for enclosure building width
800 mm
Material
Steel
Suitable for
Internal separation form 3b
Internal separation form 3a
Internal separation form 4a
Internal separation form 4b
Internal separation form 3a
Internal separation form 4a
Internal separation form 4b
| Feature Name | Feature Value |
|---|---|
| Modular spacing (EF000394) | 25 mm |
| Suitable for enclosure building width (EF000326) | 800 mm |
| Suitable for enclosure building depth (EF000327) | 800 mm |
| Width (EF000008) | 710 mm |
| Height (EF000040) | 12 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Galvanised |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 0 |
| With cable entry (EF000325) | No |
| Number of height units (EF003561) | 0 |
| With lock (EF006306) | No |
| Construction type (EF000767) | Individual part |
| For internal separation form 2a (EF009586) | No |
| For internal separation form 2b (EF009587) | No |
| For internal separation form 3a (EF009588) | Yes |
| For internal separation form 3b (EF009589) | Yes |
| For internal separation form 4a (EF009590) | Yes |
| For internal separation form 4b (EF009591) | Yes |
