View larger

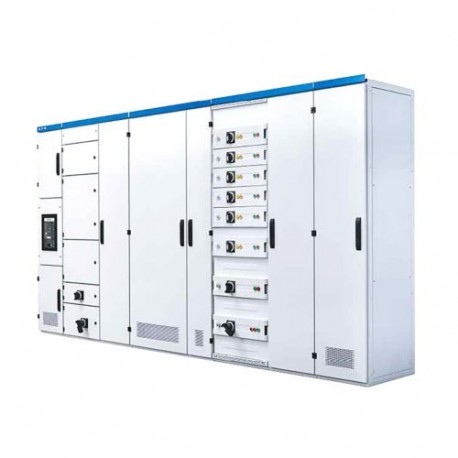

Images are for illustrative purposes only. Please refer to data sheet for details
XPFCUB-H250 185106 Y7-185106 EATON ELECTRIC Form 4b Type 6/7 cable box NZM3
XPFCUB-H250
185106
Y7-185106
EATON - MOELLER
1 Pcs.
Form 4b Type 6/7 cable box NZM3
XPFCUB-H250
Eaton xEnergy Main LV systems LV switchgear. Cable box NZM3, Form 4b, type 6/7
Cable box for MCCB NZM3, with form 4b, type 6/7, heigth 250 mm
Automation > Divider panel (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
185106
Model Code
XPFCUB-H250
EAN
4015081805310
Product Length/Depth
184 mm
Product Height
240 mm
Product Width
205 mm
Product Weight
2.5 kg
Compliances
RoHS conform
Product specifications
Construction type
Assembly kit
Fitted with:
Cable entry
Surface finishing
Galvanized
Color
Gray
Modular spacing
25 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm
Material
Steel
Suitable for
Internal separation form 4b
| Feature Name | Feature Value |
|---|---|
| Modular spacing (EF000394) | 25 mm |
| Suitable for enclosure building width (EF000326) | 0 mm |
| Suitable for enclosure building depth (EF000327) | 0 mm |
| Width (EF000008) | 205 mm |
| Height (EF000040) | 240 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Galvanised |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 0 |
| With cable entry (EF000325) | Yes |
| Number of height units (EF003561) | 0 |
| With lock (EF006306) | No |
| Construction type (EF000767) | Assembly kit |
| For internal separation form 2a (EF009586) | No |
| For internal separation form 2b (EF009587) | No |
| For internal separation form 3a (EF009588) | No |
| For internal separation form 3b (EF009589) | No |
| For internal separation form 4a (EF009590) | No |
| For internal separation form 4b (EF009591) | Yes |
