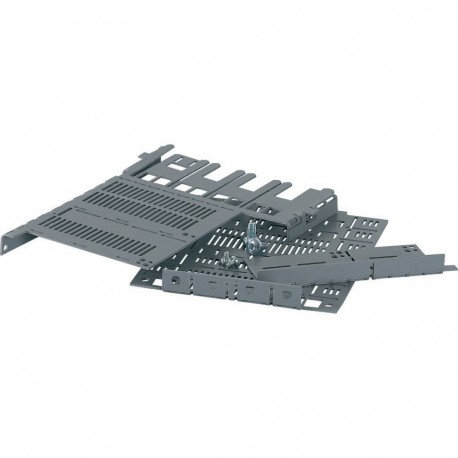

EATON - MOELLER XPCMCV1 XPCMCV1 192686 Y7-192686 EATON ELECTRIC Partition, Type6/7, NZM1 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XPCMCV1 192686 Y7-192686 EATON ELECTRIC Partition, Type6/7, NZM1

XPCMCV1

192686

Y7-192686

EATON - MOELLER

1 Pcs.

Partition, Type6/7, NZM1 XPCMCV1 Eaton xEnergy Main LV systems LV switchgear. Partition, Type6/7, NZM1 Section partition, type6/7 for NZM1, galvanized sheet steel, including mounting material

Automation > Cover / infill panel / identification strip (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The XPCMCV1 192686 Y7-192686 EATON ELECTRIC Partition, Type6/7, NZM1 acts as a structural cover partition intended to separate modular switching devices inside power distribution units. Partitions of this nature prevent electrical tracking, isolate phase connections, and provide physical security between adjacent switching components.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Cover
  • Width (EF000008): 22 mm
  • Height (EF000040): 148 mm
  • Depth (EF000049): 183 mm
  • Mounting position (EF001664): Scaffold
  • Material (EF002169): Plastic
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7037

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
192686
Model Code
XPCMCV1
EAN
4015081934157
Product Length/Depth
183 mm
Product Height
148 mm
Product Width
22 mm
Product Weight
0.3 kg
Compliances
RoHS conform

Product specifications

RAL-number
7037
Color
Gray
Material
Plastic
Mounting position
Scaffold
Model
Cover
