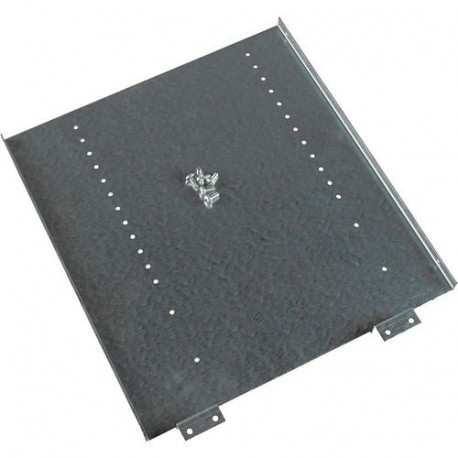

EATON - MOELLER XPBCV03504 XPBCV03504 132924 Y7-132924 EATON ELECTRIC Compartimentacion for separation device View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XPBCV03504 132924 Y7-132924 EATON ELECTRIC Compartimentacion for separation device

XPBCV03504

132924

Y7-132924

EATON - MOELLER

1 Pcs.

Compartimentacion for separation device XPBCV03504 Eaton xEnergy Main LV systems LV switchgear. Partition, XP, device area, vertical, for HxD=350x400mm Partition, XP, device area, vertical, for HxD=350x400mm

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing modular internal subdivision, the XPBCV03504 132924 Y7-132924 EATON ELECTRIC Compartimentacion for separation device acts as a structural partition kit within electrical distribution cabinets. Such compartmentalization kits isolate switching devices and support safety compliance in low-voltage switchboard designs.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 12.5 mm
  • Suitable for enclosure building width (EF000326): 800 mm
  • Suitable for enclosure building depth (EF000327): 400 mm
  • Width (EF000008): 400 mm
  • Height (EF000040): 400 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Galvanised
  • Colour (EF000007): Stainless steel
  • RAL-number (EF000116): 0
  • With cable entry (EF000325): No
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Assembly kit
  • For internal separation form 2a (EF009586): Yes
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 3a (EF009588): Yes

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
132924
Model Code
XPBCV03504
EAN
4015081298358
Product Length/Depth
40 mm
Product Height
400 mm
Product Width
400 mm
Product Weight
2.5 kg
Compliances
RoHS conform

Product specifications

Construction type
Assembly kit
Surface finishing
Galvanized
Color
Stainless steel
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
400 mm
Suitable for enclosure building width
800 mm
Material
Steel
Suitable for
Internal separation form 3b
Internal separation form 3a
Internal separation form 2a
Internal separation form 4b
Internal separation form 2b
Internal separation form 4a
