EATON - MOELLER XP2N4MC-3P XP2N4MC-3P 177120 Y7-177120 EATON ELECTRIC xEnergy No Description View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XP2N4MC-3P 177120 Y7-177120 EATON ELECTRIC xEnergy No Description

XP2N4MC-3P

177120

Y7-177120

EATON - MOELLER

1 Pcs.

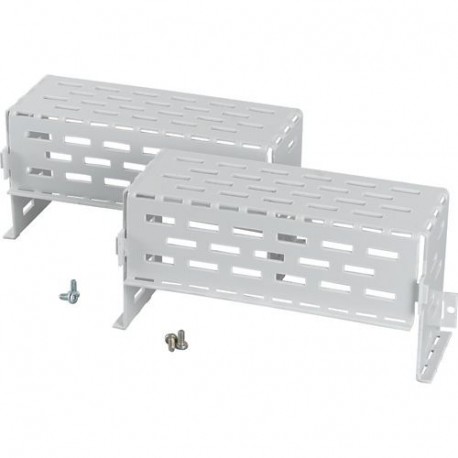

xEnergy - No Description XP2N4MC-3P Shroud for 2xNZM4, 3p

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A partition set functions as an interior barrier kit to segregate functional areas within switchgear enclosures, protecting operators and minimizing arc fault risks between zones. This Eaton Moeller XP2N4MC-3P assembly kit provides structured compartment separation for xEnergy builds. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 25 mm
  • Suitable for enclosure building width (EF000326): 600 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 234.5 mm
  • Height (EF000040): 91 mm
  • Material (EF002169): Plastic
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 0
  • With cable entry (EF000325): Yes
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Assembly kit
  • For internal separation form 2a (EF009586): No
  • For internal separation form 2b (EF009587): No
  • For internal separation form 3a (EF009588): No
  • For internal separation form 3b (EF009589): No

More info

▲
Shroud for 2xNZM4, 3p

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Divider panel (switchgear cabinet) (EC002525)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Panel (electrical cabinet) / Divider panel (electrical cabinet) ([email protected] [AKE424014])
Modular spacing
25 mm
Suitable for enclosure building width
0 mm
Suitable for enclosure building depth
0 mm
Width
0 mm
Height
0 mm
Material
Plastic
Surface finishing
Other
Colour
Grey
RAL-number
0
With cable entry
Yes
Number of height units
0
With lock
No
Construction type
Assembly kit
For internal separation form 2a
No
For internal separation form 2b
No
For internal separation form 3a
No
For internal separation form 3b
No
For internal separation form 4a
No
For internal separation form 4b
No
