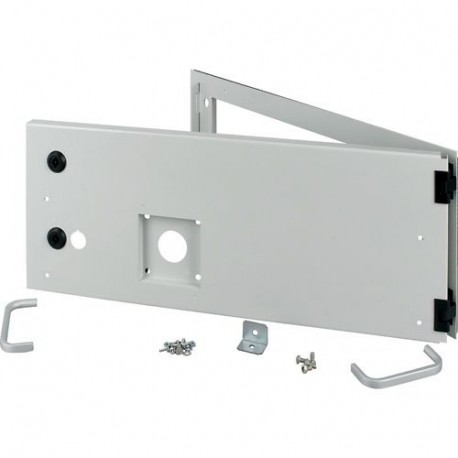

EATON - MOELLER XMW0906CDC-NZM XMW0906CDC-NZM 172186 Y7-172186 EATON ELECTRIC Front pull-out drawer, NZM, IP55, H 225mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XMW0906CDC-NZM 172186 Y7-172186 EATON ELECTRIC Front pull-out drawer, NZM, IP55, H 225mm

XMW0906CDC-NZM

172186

Y7-172186

EATON - MOELLER

1 Pcs.

Front pull-out drawer, NZM, IP55, H=225mm XMW0906CDC-NZM Eaton xEnergy Main LV systems LV switchgear. Opening metal front plate for drawer, NZM, closed IP55, H=225mm, grey Opening metal front plate for drawer, NZM, closed IP55, H=225mm, grey

Automation > Door/operating panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Front pull-out drawer serves as an internal modular housing component within industrial switchgear assemblies, allowing technicians to organize control devices and isolate specific functional sections safely. Manufactured by Eaton Moeller under part number XMW0906CDC-NZM, this powder-coated steel compartment door provides a secure IP55 rated barrier for panel integration.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Compartment door
  • Version as glazed door (EF006966): No
  • Width (EF000008): 565 mm
  • Height (EF000040): 223.5 mm
  • Depth (EF000049): 47.6 mm
  • EMC-version (EF001062): Yes
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Colour (EF000007): Grey
  • Degree of protection (IP) (EF005474): IP55

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
172186
Model Code
XMW0906CDC-NZM
EAN
4015081687459
Product Length/Depth
47.6 mm
Product Height
223.5 mm
Product Width
565 mm
Product Weight
3.93 kg
Compliances
RoHS conform

Product specifications

Features
EMC-version
Surface finishing
Powder coating
Color
Gray
Degree of protection
IP55
NEMA 4X
Material
Steel
Model
Panel door
