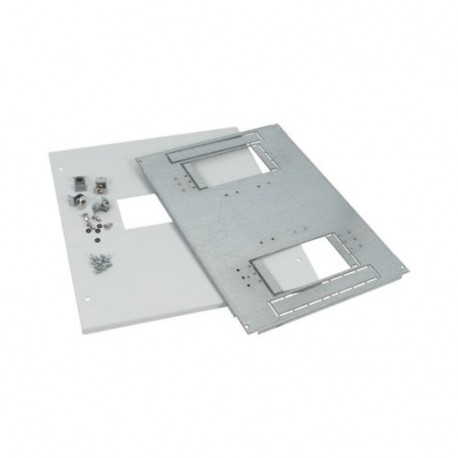

EATON - MOELLER XMN3304 XMN3304 124411 EATON ELECTRIC Mounting Kit, NZM3, Form 4 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XMN3304 124411 EATON ELECTRIC Mounting Kit, NZM3, Form 4

XMN3304

124411

EATON - MOELLER

1 Pcs.

Mounting Kit, NZM3, Form 4 Mounting Kit, NZM3, Shape 4 Mounting kit, NZM3, 630A, 3/4p, F, F-R W=425mm

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Serving as an internal installation assembly, the Eaton Moeller XMN3304 mounting kit adapts Form 4 configurations for NZM3 circuit breakers within enclosures. Specialized mounting kits are essential for correctly aligning and securing protective switching devices inside standardized panel building frameworks.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Suitable for enclosure building width (EF000326): 425 mm
  • Suitable for enclosure building height (EF009583): 2000 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 430 mm
  • Height (EF000040): 50 mm
  • Depth (EF000049): 650 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Metal
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035

More info

▲
Mounting kit, NZM3, 630A, 3/4p, F, F-R W=425mm

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Component for installation (switchgear cabinet) (EC002620)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Elements for switching cabinet, housing, rack / Component for installation (electrical cabinet) ([email protected] [ACN627011])
Model
Other
Suitable for enclosure building width
425 mm
Suitable for enclosure building height
2000 mm
Suitable for enclosure building depth
0 mm
Width
314 mm
Height
644 mm
Depth
50 mm
Max. load capacity
0 kg
Material
Metal
Colour
Grey
RAL-number
7035

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
