View larger
Images are for illustrative purposes only. Please refer to data sheet for details

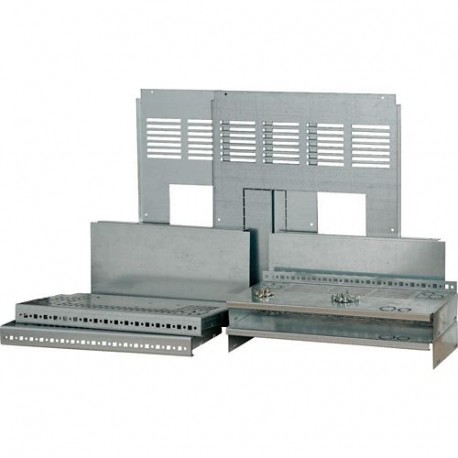

XMIX16W1002 174558 Y7-174558 EATON ELECTRIC Mounting Kit IZM
XMIX16W1002
174558
Y7-174558
EATON - MOELLER
1 Pcs.
Mounting Kit IZM
XMIX16W1002
Eaton xEnergy Main LV systems LV switchgear. Mounting kit, 2x IZMX16, withdrawable unit, W=1000mm
Mounting kit for two IZMX16 units side by side, withdrawable unit, 3/4 pole, width = 1000 mm, galvanized sheet steel, including mounting material
Automation > Component for installation (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
174558
Model Code
XMIX16W1002
EAN
4015081710133
Product Length/Depth
90 mm
Product Height
545 mm
Product Width
460 mm
Product Weight
16.59 kg
Compliances
RoHS conform
Product specifications
Color
Gray
Load capacity - max
0 kg
RAL-number
7035
Suitable for enclosure building height
2000 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
1000 mm
Material
Metal
Model
Other
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Suitable for enclosure building width (EF000326) | 1000 mm |
| Suitable for enclosure building height (EF009583) | 2000 mm |
| Suitable for enclosure building depth (EF000327) | 0 mm |
| Width (EF000008) | 460 mm |
| Height (EF000040) | 545 mm |
| Depth (EF000049) | 90 mm |
| Max. load capacity (EF000258) | 0 kg |
| Material (EF002169) | Metal |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
