View larger
Images are for illustrative purposes only. Please refer to data sheet for details

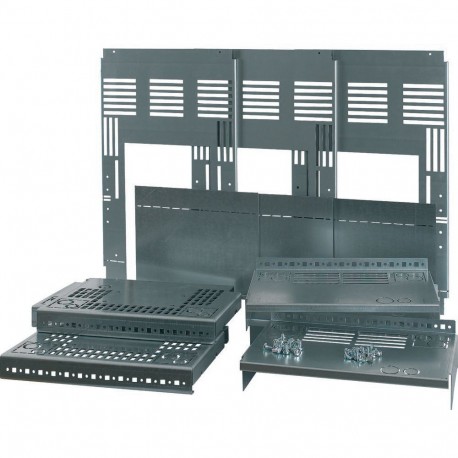

XMIX16W0803 178084 Y7-178084 EATON ELECTRIC Mounting kit for 3xIZMX16, W 800mm
XMIX16W0803
178084
Y7-178084
EATON - MOELLER
1 Pcs.
Mounting kit for 3xIZMX16, W=800mm
XMIX16W0803
Eaton xEnergy Main LV systems LV switchgear. Mounting kit for 3xIZMX16, W=800mm
Mounting kit for 3 IZMX16 with a width of 800 mm, steel plate, including mounting material
Automation > Component for installation (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
178084
Model Code
XMIX16W0803
EAN
4015081733590
Product Length/Depth
360 mm
Product Height
100 mm
Product Width
540 mm
Product Weight
18.903 kg
Compliances
RoHS conform
Product specifications
Color
Other
Load capacity - max
0 kg
RAL-number
0
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
800 mm
Material
Metal
Model
Other
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Suitable for enclosure building width (EF000326) | 800 mm |
| Suitable for enclosure building height (EF009583) | 0 mm |
| Suitable for enclosure building depth (EF000327) | 0 mm |
| Width (EF000008) | 540 mm |
| Height (EF000040) | 100 mm |
| Depth (EF000049) | 360 mm |
| Max. load capacity (EF000258) | 0 kg |
| Material (EF002169) | Metal |
| Colour (EF000007) | Other |
| RAL-number (EF000116) | 0 |
