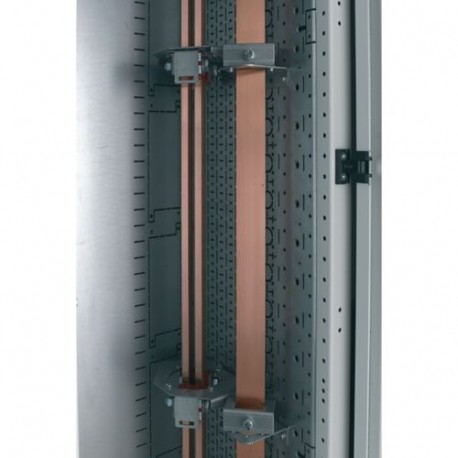

EATON - MOELLER XLSVPE XLSVPE 196884 Y7-196884 EATON ELECTRIC N Extreme Vertical Supporter ASM View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XLSVPE 196884 Y7-196884 EATON ELECTRIC N Extreme Vertical Supporter ASM

XLSVPE

196884

Y7-196884

EATON - MOELLER

1 Pcs.

N Extreme Vertical Supporter ASM Eaton xEnergy Light LV systems LV switchgear. PE rail angle bracket for cabling box, vertical PE rail angle bracket for cabling box, vertical

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

XLSVPE 196884 Y7-196884 EATON ELECTRIC N Extreme Vertical Supporter ASM assemblies are heavy-duty vertical framing supports engineered to bear the weight of large busbar systems and modular power equipment in industrial switchboards. They provide high load stability across tall enclosure structures.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Mounting kit
  • Suitable for enclosure building width (EF000326): 425 mm
  • Suitable for enclosure building height (EF009583): 2000 mm
  • Suitable for enclosure building depth (EF000327): 400 mm
  • Width (EF000008): 507 mm
  • Height (EF000040): 1707 mm
  • Depth (EF000049): 39 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Metal
  • Colour (EF000007): Zinc
  • RAL-number (EF000116): 0

More info

▲

General specifications

Product Name
Eaton xEnergy Light LV systems LV switchgear
Catalog Number
196884
Model Code
XLSVPE
EAN
9008790993367
Product Length/Depth
39 mm
Product Height
1707 mm
Product Width
507 mm
Product Weight
14.71 kg
Compliances
RoHS conform

Product specifications

Color
Zinc
Load capacity - max
0 kg
RAL-number
0
Suitable for enclosure building height
2000 mm
Suitable for enclosure building length/depth
400 mm
Suitable for enclosure building width
425 mm
Material
Metal
Model
Mounting kit
