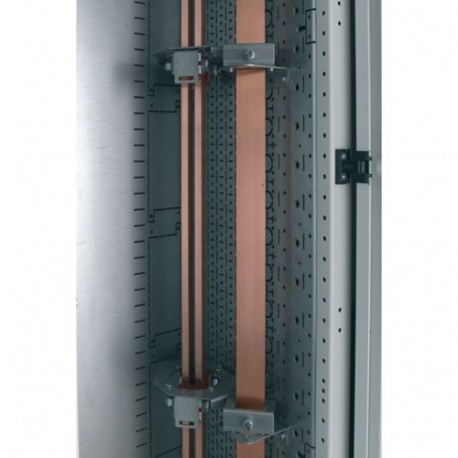

EATON - MOELLER XLSVN XLSVN 196883 Y7-196883 EATON ELECTRIC N ASM Vertical Support View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XLSVN 196883 Y7-196883 EATON ELECTRIC N ASM Vertical Support

XLSVN

196883

Y7-196883

EATON - MOELLER

1 Pcs.

N ASM Vertical Support Eaton xEnergy Light LV systems LV switchgear. N rail angle bracket for cabling box, vertical N rail angle bracket for cabling box, vertical

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

XLSVN 196883 Y7-196883 EATON ELECTRIC N ASM Vertical Support serves as a primary internal framing member in electrical enclosures, providing vertical structural integrity and alignment for busbars, brackets, and modular panel components.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Mounting kit
  • Suitable for enclosure building width (EF000326): 425 mm
  • Suitable for enclosure building height (EF009583): 2000 mm
  • Suitable for enclosure building depth (EF000327): 400 mm
  • Width (EF000008): 332 mm
  • Height (EF000040): 1707 mm
  • Depth (EF000049): 39 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Metal
  • Colour (EF000007): Zinc
  • RAL-number (EF000116): 0

More info

▲

General specifications

Product Name
Eaton xEnergy Light LV systems LV switchgear
Catalog Number
196883
Model Code
XLSVN
EAN
9008790993350
Product Length/Depth
39 mm
Product Height
1707 mm
Product Width
332 mm
Product Weight
10.28 kg
Compliances
RoHS conform

Product specifications

Color
Zinc
Load capacity - max
0 kg
RAL-number
0
Suitable for enclosure building height
2000 mm
Suitable for enclosure building length/depth
400 mm
Suitable for enclosure building width
425 mm
Material
Metal
Model
Mounting kit

Product Datasheet
