View larger
Images are for illustrative purposes only. Please refer to data sheet for details

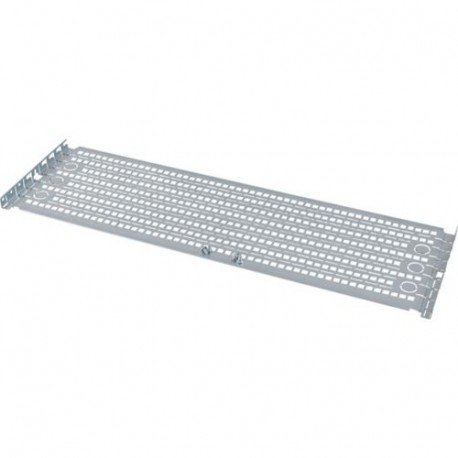

XLPUH4 196223 Y7-196223 EATON ELECTRIC Universal horizontal partition for module width 400mm
XLPUH4
196223
Y7-196223
EATON - MOELLER
1 Pcs.
Universal horizontal partition for module width 400mm
XLPUH4
Eaton xEnergy Light LV systems LV switchgear. Universal Horizontal Partition for module width 400mm
Universal Horizontal Partition for module width 400mm, 1mm galvanized steel
Automation > Divider panel (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Light LV systems LV switchgear
Catalog Number
196223
Model Code
XLPUH4
EAN
9008790953811
Product Length/Depth
450.5 mm
Product Height
18.5 mm
Product Width
320 mm
Product Weight
1.3 kg
Compliances
RoHS conform
Product specifications
Construction type
Individual part
Fitted with:
Cable entry
Surface finishing
Galvanized
Color
Gray
Modular spacing
0 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
400 mm
Suitable for enclosure building width
400 mm
Material
Steel
Suitable for
Internal separation form 3a
Internal separation form 4a
Internal separation form 4b
Internal separation form 3b
Internal separation form 4a
Internal separation form 4b
Internal separation form 3b
| Feature Name | Feature Value |
|---|---|
| Modular spacing (EF000394) | 0 mm |
| Suitable for enclosure building width (EF000326) | 400 mm |
| Suitable for enclosure building depth (EF000327) | 400 mm |
| Width (EF000008) | 320 mm |
| Height (EF000040) | 18.5 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Galvanised |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 0 |
| With cable entry (EF000325) | Yes |
| Number of height units (EF003561) | 0 |
| With lock (EF006306) | No |
| Construction type (EF000767) | Individual part |
| For internal separation form 2a (EF009586) | No |
| For internal separation form 2b (EF009587) | No |
| For internal separation form 3a (EF009588) | Yes |
| For internal separation form 3b (EF009589) | Yes |
| For internal separation form 4a (EF009590) | Yes |
| For internal separation form 4b (EF009591) | Yes |
