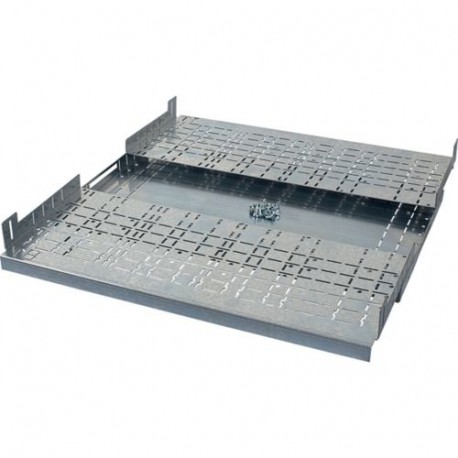

EATON - MOELLER XLPO8 XLPO8 196228 Y7-196228 EATON ELECTRIC Spacing, ACB/MCCB module, A 800mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XLPO8 196228 Y7-196228 EATON ELECTRIC Spacing, ACB/MCCB module, A 800mm

XLPO8

196228

Y7-196228

EATON - MOELLER

1 Pcs.

Spacing, ACB/MCCB module, A=800mm XLPO8 Eaton xEnergy Light LV systems LV switchgear. Separation, ACB/MCCB module, width 800mm Separation, ACB/MCCB module, width 800mm

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ACB/MCCB module spacing kit facilitates the correct positioning and physical alignment of air circuit breakers and molded case circuit breakers within electrical switchgear enclosures. Spacing elements ensure adequate clearance and support proper internal compartmentalization. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 0 mm
  • Suitable for enclosure building width (EF000326): 800 mm
  • Suitable for enclosure building depth (EF000327): 800 mm
  • Width (EF000008): 720 mm
  • Height (EF000040): 500 mm
  • Material (EF002169): Plastic
  • Surface finishing (EF006569): Untreated
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7037
  • With cable entry (EF000325): No
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Assembly kit
  • For internal separation form 2a (EF009586): Yes
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 3a (EF009588): Yes

More info

▲

General specifications

Product Name
Eaton xEnergy Light LV systems LV switchgear
Catalog Number
196228
Model Code
XLPO8
EAN
9008790953866
Product Length/Depth
500 mm
Product Height
500 mm
Product Width
720 mm
Product Weight
1 kg
Compliances
RoHS conform

Product specifications

Construction type
Assembly kit
Surface finishing
Untreated
Color
Gray
Modular spacing
0 mm
Number of height units
0
RAL-number
7037
Suitable for enclosure building length/depth
800 mm
Suitable for enclosure building width
800 mm
Material
Plastic
Suitable for
Internal separation form 4a
Internal separation form 4b
Internal separation form 3b
Internal separation form 2a
Internal separation form 3a
Internal separation form 2b
