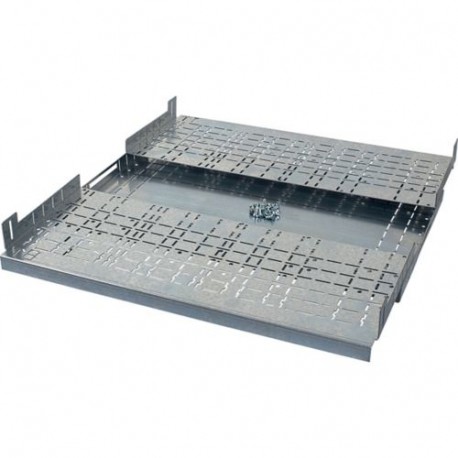

EATON - MOELLER XLPO4 XLPO4 196226 Y7-196226 EATON ELECTRIC Spacing, ACB/MCCB module, A 400mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XLPO4 196226 Y7-196226 EATON ELECTRIC Spacing, ACB/MCCB module, A 400mm

XLPO4

196226

Y7-196226

EATON - MOELLER

1 Pcs.

Spacing, ACB/MCCB module, A=400mm XLPO4 Eaton xEnergy Light LV systems LV switchgear. Separation, ACB/MCCB module, width 400mm Separation, ACB/MCCB module, width 400mm

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller spacing, ACB/MCCB module, part number XLPO4, is installed inside electrical enclosure assemblies to properly align and position heavy-duty circuit protection gear. Such spacing modules ensure precise mechanical integration for air and molded case circuit breakers within complex distribution panels.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 0 mm
  • Suitable for enclosure building width (EF000326): 400 mm
  • Suitable for enclosure building depth (EF000327): 400 mm
  • Width (EF000008): 320 mm
  • Height (EF000040): 500 mm
  • Material (EF002169): Plastic
  • Surface finishing (EF006569): Untreated
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7037
  • With cable entry (EF000325): No
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Assembly kit
  • For internal separation form 2a (EF009586): Yes
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 3a (EF009588): Yes

More info

▲

General specifications

Product Name
Eaton xEnergy Light LV systems LV switchgear
Catalog Number
196226
Model Code
XLPO4
EAN
9008790953842
Product Length/Depth
500 mm
Product Height
500 mm
Product Width
320 mm
Product Weight
1 kg
Compliances
RoHS conform

Product specifications

Construction type
Assembly kit
Surface finishing
Untreated
Color
Gray
Modular spacing
0 mm
Number of height units
0
RAL-number
7037
Suitable for enclosure building length/depth
400 mm
Suitable for enclosure building width
400 mm
Material
Plastic
Suitable for
Internal separation form 4a
Internal separation form 2b
Internal separation form 2a
Internal separation form 3b
Internal separation form 3a
Internal separation form 4b

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
