View larger
Images are for illustrative purposes only. Please refer to data sheet for details

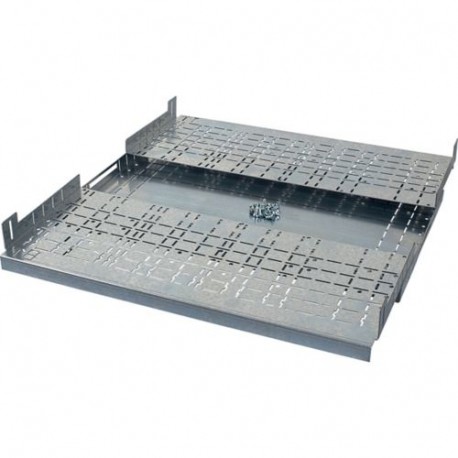

XLPCR8 196268 Y7-196268 EATON ELECTRIC clearance, MCCB/FSD, width 800mm
XLPCR8
196268
Y7-196268
EATON - MOELLER
1 Pcs.
clearance, MCCB/FSD, width 800mm
XLPCR8
Eaton xEnergy Light LV systems LV switchgear. Separation, MCCB/FSD module, width 800mm
Separation, ACB/FSD module, width 800mm
Automation > Divider panel (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Light LV systems LV switchgear
Catalog Number
196268
Model Code
XLPCR8
EAN
9008790954122
Product Length/Depth
500 mm
Product Height
500 mm
Product Width
720 mm
Product Weight
1 kg
Compliances
RoHS conform
Product specifications
Construction type
Assembly kit
Fitted with:
Cable entry
Surface finishing
Galvanized
Color
Gray
Modular spacing
0 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
800 mm
Suitable for enclosure building width
800 mm
Material
Steel
Suitable for
Internal separation form 2a
Internal separation form 3b
Internal separation form 4a
Internal separation form 3a
Internal separation form 4b
Internal separation form 2b
Internal separation form 3b
Internal separation form 4a
Internal separation form 3a
Internal separation form 4b
Internal separation form 2b
| Feature Name | Feature Value |
|---|---|
| Modular spacing (EF000394) | 0 mm |
| Suitable for enclosure building width (EF000326) | 800 mm |
| Suitable for enclosure building depth (EF000327) | 800 mm |
| Width (EF000008) | 720 mm |
| Height (EF000040) | 500 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Galvanised |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 0 |
| With cable entry (EF000325) | Yes |
| Number of height units (EF003561) | 0 |
| With lock (EF006306) | No |
| Construction type (EF000767) | Assembly kit |
| For internal separation form 2a (EF009586) | Yes |
| For internal separation form 2b (EF009587) | Yes |
| For internal separation form 3a (EF009588) | Yes |
| For internal separation form 3b (EF009589) | Yes |
| For internal separation form 4a (EF009590) | Yes |
| For internal separation form 4b (EF009591) | Yes |
