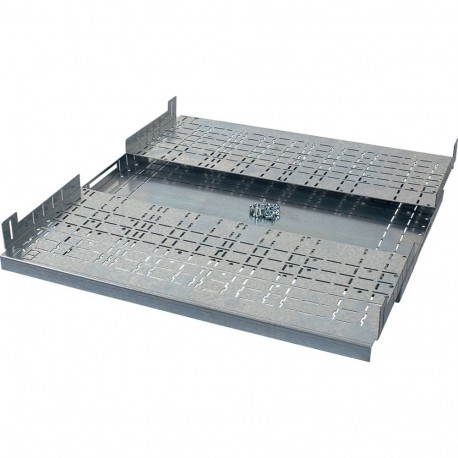

EATON - MOELLER XLPCR6 XLPCR6 196267 Y7-196267 EATON ELECTRIC clearance, MCCB/FSD, width 600mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XLPCR6 196267 Y7-196267 EATON ELECTRIC clearance, MCCB/FSD, width 600mm

XLPCR6

196267

Y7-196267

EATON - MOELLER

1 Pcs.

clearance, MCCB/FSD, width 600mm XLPCR6 Eaton xEnergy Light LV systems LV switchgear. Separation, MCCB/FSD module, width 600mm Separation, ACB/FSD module, width 600mm

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A clearance, MCCB/FSD, width 600mm assembly kit from Eaton Moeller, part number XLPCR6, provides necessary spacing and alignment clearances for molded case circuit breakers inside modular panels. Such kits ensure proper thermal dissipation and safe physical separation around protective switching devices.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 0 mm
  • Suitable for enclosure building width (EF000326): 600 mm
  • Suitable for enclosure building depth (EF000327): 600 mm
  • Width (EF000008): 520 mm
  • Height (EF000040): 500 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Galvanised
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 0
  • With cable entry (EF000325): Yes
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Assembly kit
  • For internal separation form 2a (EF009586): Yes
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 3a (EF009588): Yes

More info

▲

General specifications

Product Name
Eaton xEnergy Light LV systems LV switchgear
Catalog Number
196267
Model Code
XLPCR6
EAN
9008790954115
Product Length/Depth
500 mm
Product Height
500 mm
Product Width
520 mm
Product Weight
1 kg
Compliances
RoHS conform

Product specifications

Construction type
Assembly kit
Fitted with:
Cable entry
Surface finishing
Galvanized
Color
Gray
Modular spacing
0 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
600 mm
Suitable for enclosure building width
600 mm
Material
Steel
Suitable for
Internal separation form 2a
Internal separation form 3a
Internal separation form 4a
Internal separation form 3b
Internal separation form 2b
Internal separation form 4b
