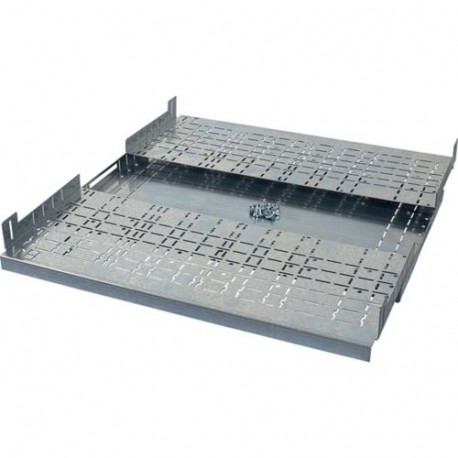

EATON - MOELLER XLPCR4 XLPCR4 196266 Y7-196266 EATON ELECTRIC clearance, MCCB/FSD, width 400mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XLPCR4 196266 Y7-196266 EATON ELECTRIC clearance, MCCB/FSD, width 400mm

XLPCR4

196266

Y7-196266

EATON - MOELLER

1 Pcs.

clearance, MCCB/FSD, width 400mm XLPCR4 Eaton xEnergy Light LV systems LV switchgear. Separation, MCCB/FSD module, width 400mm Separation, ACB/FSD module, width 400mm

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for molded case circuit breakers and switch disconnectors, Eaton Moeller part number XLPCR4 provides structural clearance within a 400mm wide enclosure profile. Clearances and barrier kits ensure adequate air gap and terminal access for high-capacity switching devices. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 0 mm
  • Suitable for enclosure building width (EF000326): 400 mm
  • Suitable for enclosure building depth (EF000327): 400 mm
  • Width (EF000008): 320 mm
  • Height (EF000040): 500 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Galvanised
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 0
  • With cable entry (EF000325): Yes
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Assembly kit
  • For internal separation form 2a (EF009586): Yes
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 3a (EF009588): Yes

More info

▲

General specifications

Product Name
Eaton xEnergy Light LV systems LV switchgear
Catalog Number
196266
Model Code
XLPCR4
EAN
9008790954108
Product Length/Depth
500 mm
Product Height
500 mm
Product Width
320 mm
Product Weight
1 kg
Compliances
RoHS conform

Product specifications

Construction type
Assembly kit
Fitted with:
Cable entry
Surface finishing
Galvanized
Color
Gray
Modular spacing
0 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
400 mm
Suitable for enclosure building width
400 mm
Material
Steel
Suitable for
Internal separation form 3a
Internal separation form 3b
Internal separation form 4a
Internal separation form 4b
Internal separation form 2a
Internal separation form 2b

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
