View larger
Images are for illustrative purposes only. Please refer to data sheet for details

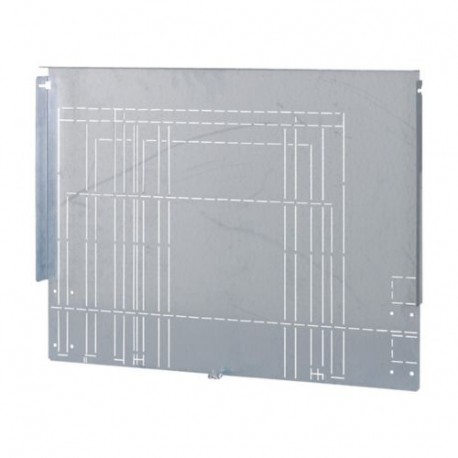

XLPA16B8 196260 Y7-196260 EATON ELECTRIC clearance, IZM module, width 800mm
XLPA16B8
196260
Y7-196260
EATON - MOELLER
1 Pcs.
clearance, IZM module, width 800mm
XLPA16B8
Eaton xEnergy Light LV systems LV switchgear. Separation, ACB module, width 800mm
Separation, ACB module, width 800mm
Automation > Divider panel (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Light LV systems LV switchgear
Catalog Number
196260
Model Code
XLPA16B8
EAN
9008790954061
Product Length/Depth
43 mm
Product Height
540 mm
Product Width
721 mm
Product Weight
3.26 kg
Compliances
RoHS conform
Product specifications
Construction type
Individual part
Fitted with:
Cable entry
Surface finishing
Galvanized
Color
Gray
Modular spacing
0 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
800 mm
Suitable for enclosure building width
600 mm
Material
Steel
Suitable for
Internal separation form 2a
Internal separation form 4a
Internal separation form 3a
Internal separation form 4b
Internal separation form 3b
Internal separation form 2b
Internal separation form 4a
Internal separation form 3a
Internal separation form 4b
Internal separation form 3b
Internal separation form 2b
| Feature Name | Feature Value |
|---|---|
| Modular spacing (EF000394) | 0 mm |
| Suitable for enclosure building width (EF000326) | 600 mm |
| Suitable for enclosure building depth (EF000327) | 800 mm |
| Width (EF000008) | 721 mm |
| Height (EF000040) | 540 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Galvanised |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 0 |
| With cable entry (EF000325) | Yes |
| Number of height units (EF003561) | 0 |
| With lock (EF006306) | No |
| Construction type (EF000767) | Individual part |
| For internal separation form 2a (EF009586) | Yes |
| For internal separation form 2b (EF009587) | Yes |
| For internal separation form 3a (EF009588) | Yes |
| For internal separation form 3b (EF009589) | Yes |
| For internal separation form 4a (EF009590) | Yes |
| For internal separation form 4b (EF009591) | Yes |
