View larger
Images are for illustrative purposes only. Please refer to data sheet for details

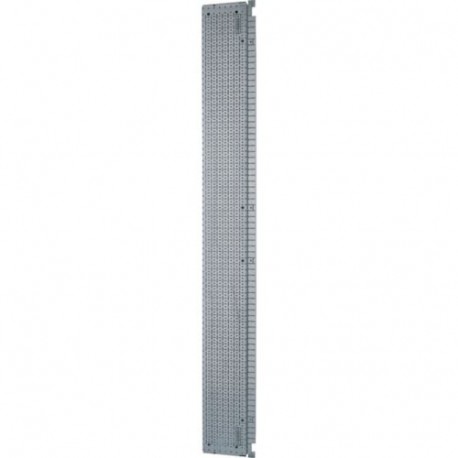

XLASRD6S 196221 Y7-196221 EATON ELECTRIC Wall mounting profile for mounting, depth 600
XLASRD6S
196221
Y7-196221
EATON - MOELLER
1 Pcs.
Wall mounting profile for mounting, depth=600
XLASRD6S
Eaton xEnergy Light LV systems LV switchgear. Mounting profile for mounting sidewall, sectiondepth=600
Mounting profile for mounting sidewall, sectiondepth=600
Automation > Component for installation (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Light LV systems LV switchgear
Catalog Number
196221
Model Code
XLASRD6S
EAN
9008790953798
Product Length/Depth
475 mm
Product Height
50.5 mm
Product Width
41 mm
Product Weight
0.5 kg
Compliances
RoHS conform
Product specifications
Color
Gray
Load capacity - max
0 kg
RAL-number
0
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
600 mm
Suitable for enclosure building width
0 mm
Material
Metal
Model
Mounting bar
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Mounting bar |
| Suitable for enclosure building width (EF000326) | 0 mm |
| Suitable for enclosure building height (EF009583) | 0 mm |
| Suitable for enclosure building depth (EF000327) | 600 mm |
| Width (EF000008) | 41 mm |
| Height (EF000040) | 50.5 mm |
| Depth (EF000049) | 475 mm |
| Max. load capacity (EF000258) | 0 kg |
| Material (EF002169) | Metal |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 0 |
