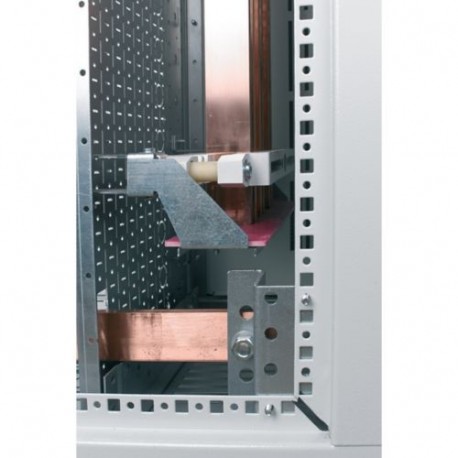

EATON - MOELLER XLADE XLADE 196425 Y7-196425 EATON ELECTRIC Vertical Mounting, Lower Bracket View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XLADE 196425 Y7-196425 EATON ELECTRIC Vertical Mounting, Lower Bracket

XLADE

196425

Y7-196425

EATON - MOELLER

1 Pcs.

Vertical Mounting, Lower Bracket XLADE Eaton xEnergy Light LV systems LV switchgear. Vertical busbar, lower support Vertical busbar lower support, baseplate made of GPO-3

Automation > Busbar support
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton xEnergy Light LV systems LV switchgear
Catalog Number
196425
Model Code
XLADE
EAN
9008790955464
Product Length/Depth
76.5 mm
Product Height
95 mm
Product Width
288 mm
Product Weight
0.52 kg
Compliances
RoHS conform

Product specifications

Current rating - max
1600 A
Busbar distance
60 mm
Number of poles
Four-pole

ETIM for 196425 Power distribution systems (EC001166)
Feature Name Feature Value
Number of poles (EF001391) 4
Max. rated current (EF007926) 1600 A
Busbar distance (EF002638) 60 mm
