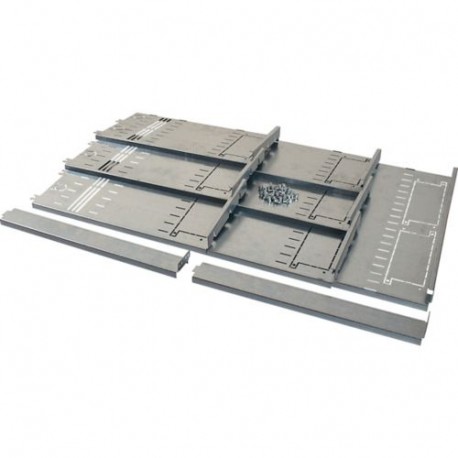

EATON - MOELLER XLACB04 XLACB04 196880 Y7-196880 EATON ELECTRIC partition module side wall width 400mm, IP20, galvanized View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XLACB04 196880 Y7-196880 EATON ELECTRIC partition module side wall width 400mm, IP20, galvanized

XLACB04

196880

Y7-196880

EATON - MOELLER

1 Pcs.

partition module side wall width= 400mm, IP20, galvanized XLACB04 Modular partition side wall for Width = 400mm, IP20, galvanized Modular partition side wall for Width = 400mm, IP20, 1mm galvanized sheetsteel

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller XLACB04 partition module side wall is an assembly kit utilized in industrial enclosures to establish internal compartmentalization and structural stability. Side wall partitions organize complex wiring layouts and provide necessary physical barriers between adjacent equipment sections.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 0 mm
  • Suitable for enclosure building width (EF000326): 600 mm
  • Suitable for enclosure building depth (EF000327): 400 mm
  • Width (EF000008): 1107 mm
  • Height (EF000040): 1507 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Galvanised
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 0
  • With cable entry (EF000325): Yes
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Assembly kit
  • For internal separation form 2a (EF009586): No
  • For internal separation form 2b (EF009587): No
  • For internal separation form 3a (EF009588): No

More info

▲
EL-Nummer (Norway)
2457171
Modular partition side wall for Width = 400mm, IP20, galvanized
Modular partition side wall for Width = 400mm, IP20, 1mm galvanized sheetsteel

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Divider panel (switchgear cabinet) (EC002525)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Panel (electrical cabinet) / Divider panel (electrical cabinet) ([email protected] [AKE424014])
Modular spacing
0 mm
Suitable for enclosure building width
0 mm
Suitable for enclosure building depth
0 mm
Width
390 mm
Height
1940 mm
Material
Steel
Surface finishing
Galvanized
Colour
Grey
RAL-number
0
With cable entry
Yes
Number of height units
0
With lock
No
Construction type
Assembly kit
For internal separation form 2a
No
For internal separation form 2b
No
For internal separation form 3a
No
For internal separation form 3b
No
For internal separation form 4a
No
For internal separation form 4b
No
