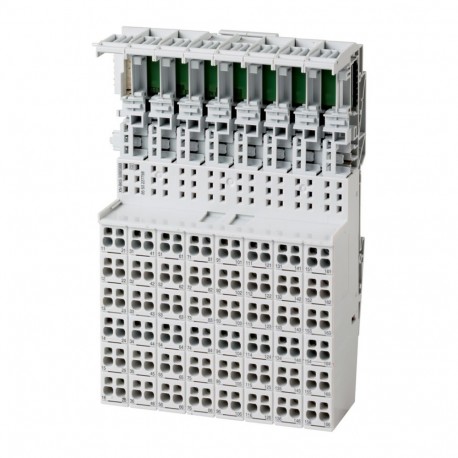

XN-B6S-SBBSBB 140140 Y7-140140 EATON ELECTRIC Base module block XI/ON, screw, 6 connection levels
XN-B6S-SBBSBB
140140
Y7-140140
EATON - MOELLER
1 Pcs.
Automation > Fieldbus, decentr. periphery - mounting frame
Remote I / O Modules XION
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller base module block XI/ON provides a structured mounting base and terminal interface for modular remote I/O configurations, organizing field device wiring inside control enclosures. The XN-B6S-SBBSBB configuration features multiple connection levels for comprehensive signal integration.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With integrated power supply (EF003338): No
- Input voltage AC 50 Hz (EF007118): 0 V
- Input voltage AC 60 Hz (EF007119): 0 V
- Input voltage DC (EF007120): 0 V
- Type of voltage (input voltage) (EF003033): DC
- Max. input current AC 50 Hz (EF007360): 0 A
- Max. input current AC 60 Hz (EF007361): 0 A
- Max. input current DC (EF007362): 0 A
- Output voltage AC 50 Hz (EF006999): 0 V
- Output voltage AC 60 Hz (EF007000): 0 V
- Output voltage DC (EF007001): 0 V
- Type of output voltage (EF008222): DC
- Max. output current AC 50 Hz (EF007351): 0 A
- Max. output current AC 60 Hz (EF007352): 0 A
- Max. output current DC (EF007353): 0 A
- System accessory (EF004118): Yes
More info
▲General specifications
IEC/EN 6113-2
CSA-C22.2 No. 142
IEC/EN 61000-6-2
UL Recognized
CE
IEC/EN 61131-2
IEC/EN 61000-6-4
Rated data for terminations according to IEC/EN 60947-7-1
UL Category Control No.: NRAQ, NRAQ7
UL report applies to both US and Canada
CE, cUL
Certified by UL for use in Canada
UL 508
UL File No.: E205091
Features & Functions
Pluggable modules, central modules
General
Ambient conditions, mechanical
Continuous according to IEC/EN 60068-2-29
Climatic environmental conditions
Harmful gasses - SO2: 10 ppm (relative humidity < 75%, no condensation)
Electro magnetic compatibility
230 - 1000 MHz (radiated, high frequency, according to EN 55016-2-3)
Terminal capacities
0.5 - 2.5 mm², solid, H07V-U
0.5 - 1.5 mm², with ferrules without plastic collar according to DIN 46228-1 (ferrules crimped gas-tight)
0.5 - 1.5 mm², flexible without ferrule, H07V-K
