XC-204-C11-003 199974 Y7-199974 EATON ELECTRIC XC204 Modular PLC, Micro PLC, Programmable CODESYS 3, USB, Et..
XC-204-C11-003
199974
Y7-199974
EATON - MOELLER
1 Pcs.
Automation > PLC CPU-module
Remote I / O Modules XN300
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

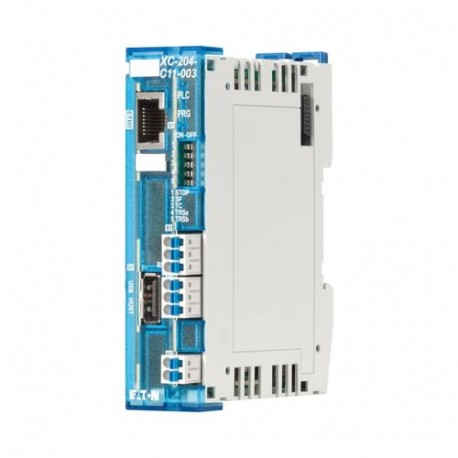

The Eaton Electric XC204 Modular PLC acts as a versatile programmable logic controller engineered to execute control programs within machine building and process automation setups. Modular micro PLCs provide scalable I/O handling and rapid instruction execution to govern complex machinery, conveyor lines, and automated subsystems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Supply voltage AC 50 Hz (EF007532): 0 V
- Supply voltage AC 60 Hz (EF007533): 0 V
- Supply voltage DC (EF007534): 19.2 V
- Voltage type (supply voltage) (EF002991): DC
- Number of relay outputs (EF007348): 0
- Max. number of time switches (EF007349): 1000
- Model (EF000010): Modular
- Processing time (1K, binary operation) (EF003004): 0.00125 ms
- Number of HW-interfaces industrial Ethernet (EF003020): 1
- Number of interfaces PROFINET (EF006932): 0
- Number of HW-interfaces RS-232 (EF003021): 0
- Number of HW-interfaces RS-422 (EF003022): 0
- Number of HW-interfaces RS-485 (EF003023): 1
- Number of HW-interfaces USB (EF003025): 1
- Number of HW-interfaces parallel (EF003026): 0
- Number of HW-interfaces wireless (EF006933): 0
More info
▲General specifications
EN 61131
EAC
UL File No.: E205091
CE
cULus Listed
Features & Functions
General
47 dB (at 230 - 1000 MHz, Class A, radiated, high frequency)
Ambient conditions, mechanical
Climatic environmental conditions
Terminal capacities
0.25 - 1.5 mm², with ferrules with plastic collar according to DIN 46228-1 (ferrules crimped gas-tight)
Power supply
10 ms
Communication
CAN
RS485
XN300
EtherNet/IP
MODBUS
Other bus systems
TCP/IP
