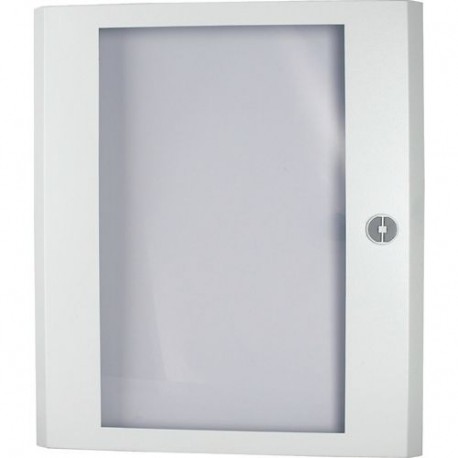

EATON - MOELLER BP-DT-400/15-W BP-DT-400/15-W 292454 0002456153 EATON ELECTRIC White door with inspection window View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BP-DT-400/15-W 292454 0002456153 EATON ELECTRIC White door with inspection window

BP-DT-400/15-W

292454

0002456153

EATON - MOELLER

1 Pcs.

White door with inspection window Sheet steel door, BP-DT-...With window, front mounted, for height 1500 mm, width 400 mm, can be quickly installed and disassembled, can be fitted on the right or left, opening angle 167°, 1-point lock with cam lock. Material characteristic: sheet steel, powder-spray painted, RAL 9016, sheet thickness 1 mm, 2 mm plexiglass transparent panel, equipment supplied: 1 door, earth kit

Automation > Door/operating panel (switchgear cabinet)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller white door with inspection window (part number BP-DT-400/15-W) serves as an access door for electrical distribution enclosures, featuring an integrated window for monitoring internal components safely.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Stop door
  • Version as glazed door (EF006966): Yes
  • Width (EF000008): 415 mm
  • Height (EF000040): 1510 mm
  • Depth (EF000049): 45 mm
  • EMC-version (EF001062): No
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Colour (EF000007): White
  • Degree of protection (IP) (EF005474): IP30

More info

▲

General specifications

Product Name
Eaton xEnergy Basic door
Catalog Number
292454
Model Code
BP-DT-400/15-W
EAN
4015082924546
Product Length/Depth
45 mm
Product Height
1510 mm
Product Width
415 mm
Product Weight
2.85 kg
Compliances
RoHS conform

Delivery program

Type
Additional equipment
Model
Stop door
Color
White
Traffic white (RAL 9016)

Technical data - mechanical

Surface finishing
With powder coating
Powder coating
Mounting method
Surface mounting
Material
Steel
Sheet steel/plastic
Cover/door color
Transparent
Cover/door type
Three-point turn-lock
Housing material
Sheet steel/plastic
Suitable for height
1560 mm
Suitable for width
400 mm

Additional information

Features
Version as glazed door
Functions
Additional equipment
