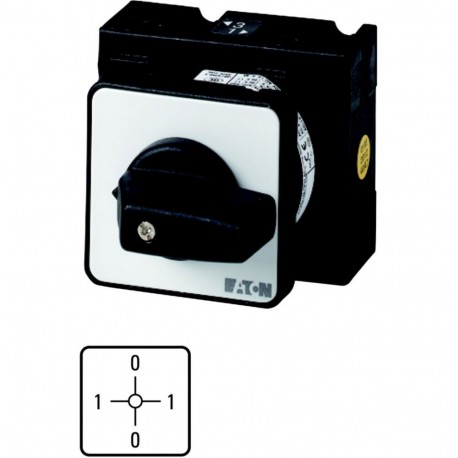

EATON - MOELLER T3-1-8002/E T3-1-8002/E 016932 Y7-16932 EATON ELECTRIC Voltmeter selector switches, Contacts: 2, 32 A, front plate: 0-1-.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-1-8002/E 016932 Y7-16932 EATON ELECTRIC Voltmeter selector switches, Contacts: 2, 32 A, front plate: 0-1-..

T3-1-8002/E

016932

Y7-16932

EATON - MOELLER

1 Pcs.

Voltmeter selector switches, Contacts: 2, 32 A, front plate: 0-1-0-1, 90 °, maintained, flush mounting Voltmeter Selector Switch 2 Pole 32 A Indicator Plate: Eaton Moeller® series T3 Voltmeter selector switches, T3, 32 A, flush mounting, 1 contact unit(s), Contacts: 2, 90 °, maintained, With 0 (Off) position, 0-1-0-1, Design number 8002 Cam switch according to IEC/EN60947, size T3, installation form, front plate 48x48, degree of protection Front IP65 with black thumb grip, rated uninterrupted current Iu 32A, rated operating voltage Ue 690V, deliverable accessories according to catalog information cam switch T

Automation > Voltmeter selector switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller T3-1-8002/E voltmeter selector switch is engineered for demanding electrical control environments, offering robust rotary control for testing phase relationships. Its heavy-duty construction suits high-current industrial switchboards requiring dependable manual diagnostics. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Measurement between phases possible (EF001145): Yes
  • With zero (off) position (EF001416): Yes
  • Device construction (EF008240): Intermediate mounting
  • Modular version (EF001126): No
  • With control element (EF001538): Yes
  • Degree of protection (IP) (EF005474): IP65
  • Degree of protection (NEMA) (EF011959): 12

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Voltmeter selector switch
Catalog Number
016932
Model Code
T3-1-8002/E
EAN
4015080169321
Product Length/Depth
79 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.11 kg
Certifications
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
UL
UL File No.: E36332
CSA Class No.: 3211-05
CE
CSA
VDE 0660
CSA-C22.2 No. 94
UL Category Control No.: NLRV
CSA File No.: 012528
IEC/EN 60947
IEC/EN 60947-3
UL 60947-4-1
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
