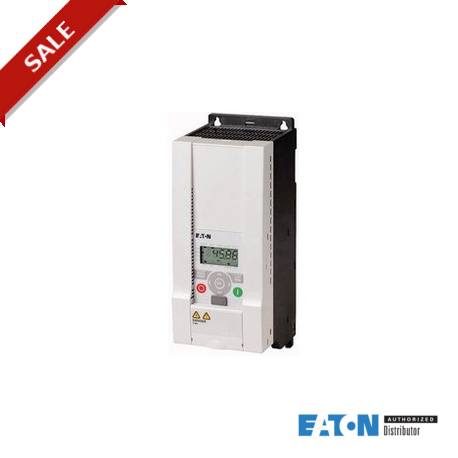

EATON - MOELLER MMX34AA7D6F0-0 MMX34AA7D6F0-0 121403 EATON ELECTRIC Variable frequency drives, 3p, 400 V, 7, 6A, 3kW View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MMX34AA7D6F0-0 121403 EATON ELECTRIC Variable frequency drives, 3p, 400 V, 7, 6A, 3kW

MMX34AA7D6F0-0

121403

EATON - MOELLER

1 Pcs.

Variable frequency drives, 3p, 400 V, 7, 6A, 3kW Variable frequency drive, Mains voltage (50/60Hz): ULN = 380 (-15%) - 480 (+10%) V, Degree of Protection: IP20/NEMA 0, Fitted with: Fan (internal, temperature controlled), Frame size: FS3

Automation > Frequency converter less than 1 kV

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller MMX34AA7D6F0-0 variable frequency drive offers reliable three-phase motor regulation for factory automation and machinery control. Variable frequency drives allow operators to adjust motor speeds dynamically, optimizing process performance and minimizing energy waste. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mains voltage (EF006780): 323 V
  • Mains frequency (EF006783): 50/60 Hz
  • Number of phases input (EF007117): 3
  • Number of phases output (EF006998): 3
  • Max. output frequency (EF007350): 320 Hz
  • Max. output voltage (EF009560): 400 V
  • Nominal output current I2N (EF009561): 7.6 A
  • Relative symmetric net frequency tolerance (EF007454): 0 %
  • With control element (EF001538): Yes
  • Application in industrial area permitted (EF007294): Yes
  • Supporting protocol for TCP/IP (EF003050): No
  • Supporting protocol for PROFIBUS (EF003052): No
  • Supporting protocol for CAN (EF003053): No
  • Supporting protocol for INTERBUS (EF003054): No
  • Supporting protocol for ASI (EF003051): No
  • Supporting protocol for KNX (EF003055): No
