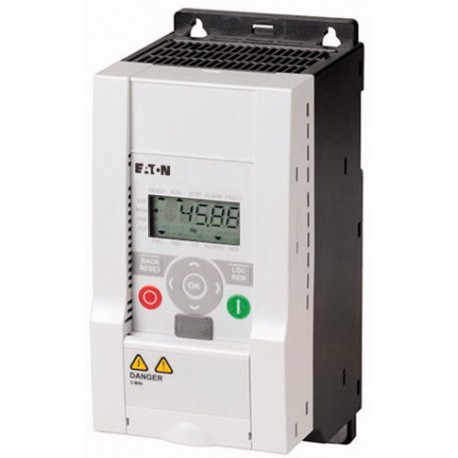

MMX34AA4D3F0-0 121401 EATON ELECTRIC Variable frequency drives, 3p, 400 V, 4.3A, 1.5kW
MMX34AA4D3F0-0
121401
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller MMX34AA4D3F0-0 variable frequency drive controls AC motor performance by modulating voltage and frequency parameters in automated systems. These components allow operators to fine-tune machine speeds, reduce mechanical strain, and optimize power consumption across production lines.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 323 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 3
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 320 Hz
- Max. output voltage (EF009560): 400 V
- Nominal output current I2N (EF009561): 4.3 A
- Relative symmetric net frequency tolerance (EF007454): 0 %
- With control element (EF001538): Yes
- Application in industrial area permitted (EF007294): Yes
- Supporting protocol for TCP/IP (EF003050): No
- Supporting protocol for PROFIBUS (EF003052): No
- Supporting protocol for CAN (EF003053): No
- Supporting protocol for INTERBUS (EF003054): No
- Supporting protocol for ASI (EF003051): No
- Supporting protocol for KNX (EF003055): No
More info
▲Delivery program
Technical data
adjustable 1 - 16 kHz
