View larger
Images are for illustrative purposes only. Please refer to data sheet for details

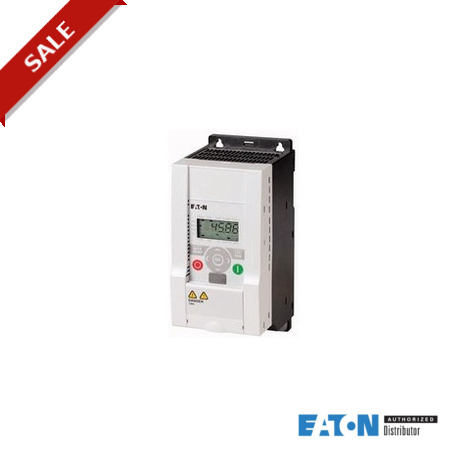

MMX12AA3D7N0-0 122663 EATON ELECTRIC Variable frequency drives, 1p, 230 V, 3.7A, 0.75kW
MMX12AA3D7N0-0
122663
EATON - MOELLER
1 Pcs.
Variable frequency drives, 1p, 230 V, 3.7A, 0.75kW
Variable frequency drive, Mains voltage (50/60Hz): ULN = 208 (-15%) - 240 (+10%) V, Degree of Protection: IP20/NEMA 0, Fitted with: Fan (internal, temperature controlled), Frame size: FS2
Automation > Frequency converter less than 1 kV
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Feature Name | Feature Value |
|---|---|
| Mains voltage (EF006780) | 0 V |
| Mains frequency (EF006783) | 50/60 Hz |
| Number of phases input (EF007117) | 1 |
| Number of phases output (EF006998) | 1 |
| Max. output frequency (EF007350) | 0 Hz |
| Max. output voltage (EF009560) | 230 V |
| Nominal output current I2N (EF009561) | 3.7 A |
| Max. output at quadratic load at rated output voltage (EF007366) | 0.75 kW |
| Max. output at linear load at rated output voltage (EF007364) | 0.75 kW |
| Power consumption (EF000346) | None W |
| Relative symmetric net frequency tolerance (EF007454) | 10 % |
| Relative symmetric net voltage tolerance (EF007453) | None % |
| Number of analogue outputs (EF001995) | |
| Number of analogue inputs (EF001994) | |
| Number of digital outputs (EF001993) | |
| Number of digital inputs (EF001992) | |
| With control element (EF001538) | true |
| Application in industrial area permitted (EF007294) | true |
| Application in domestic- and commercial area permitted (EF007295) | false |
| Supporting protocol for TCP/IP (EF003050) | false |
| Supporting protocol for PROFIBUS (EF003052) | false |
| Supporting protocol for CAN (EF003053) | false |
| Supporting protocol for INTERBUS (EF003054) | false |
| Supporting protocol for ASI (EF003051) | false |
| Supporting protocol for KNX (EF003055) | false |
| Supporting protocol for Modbus (EF003057) | true |
| Supporting protocol for Data-Highway (EF003058) | false |
| Supporting protocol for DeviceNet (EF003059) | false |
| Supporting protocol for SUCONET (EF003060) | false |
| Supporting protocol for LON (EF003017) | false |
| Supporting protocol for PROFINET IO (EF007525) | false |
| Supporting protocol for PROFINET CBA (EF007524) | false |
| Supporting protocol for SERCOS (EF006657) | false |
| Supporting protocol for Foundation Fieldbus (EF007522) | false |
| Supporting protocol for EtherNet/IP (EF007521) | false |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | false |
| Supporting protocol for DeviceNet Safety (EF007520) | false |
| Supporting protocol for INTERBUS-Safety (EF006662) | false |
| Supporting protocol for PROFIsafe (EF007526) | false |
| Supporting protocol for SafetyBUS p (EF007527) | false |
| Supporting protocol for BACnet (EF011944) | false |
| Supporting protocol for other bus systems (EF003062) | false |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 1 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces USB (EF003025) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces other (EF003027) | 0 |
| With optical interface (EF003028) | false |
| With PC connection (EF006107) | true |
| Integrated breaking resistance (EF007293) | false |
| 4-quadrant operation possible (EF006803) | false |
| Type of converter (EF006978) | U converter |
| Degree of protection (IP) (EF005474) | IP20 |
| Degree of protection (NEMA) (EF011959) | |
| Height (EF000040) | 160 mm |
| Width (EF000008) | 66 mm |
| Depth (EF000049) | 102 mm |
