View larger
Images are for illustrative purposes only. Please refer to data sheet for details

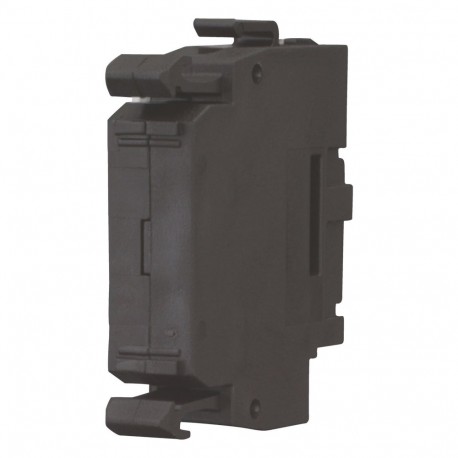

M22-SWD-NOP 147637 Y7-147637 EATON ELECTRIC Universal module, SmartWire-DT, front mount
M22-SWD-NOP
147637
Y7-147637
EATON - MOELLER
1 Pcs.
Universal module, SmartWire-DT, front mount
M22-SWD-NOP
Eaton Moeller® series M22 Universal module, SmartWire-DT, front mount
SmartWire -DT simply ingenious—for pilot devices: standard RMQ-Titan front elements can be connected simply with SmartWire-DT function elements, finished!
Automation > Accessories/spare parts for low-voltage switch technology
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 SmartWire-DT universal slave
Catalog Number
147637
Model Code
M22-SWD-NOP
EAN
4015081440979
Product Length/Depth
45 mm
Product Height
42 mm
Product Width
10 mm
Product Weight
0.009 kg
Certifications
UL Category Control No.: NKCR
CSA File No.: 2324643
UL File No.: E29184
CSA Class No.: 3211-07
CSA File No.: 2324643
UL File No.: E29184
CSA Class No.: 3211-07
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
| Accessory (EF013236) | No |
| Spare part (EF013237) | No |
