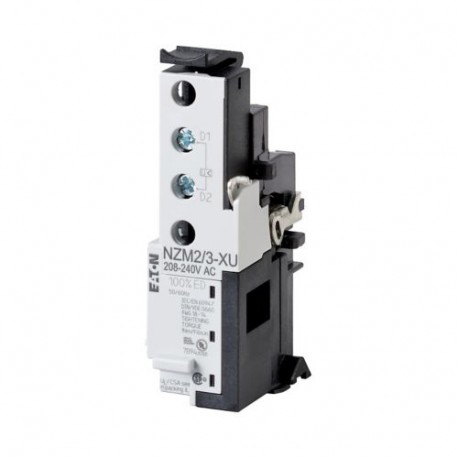

NZM2/3-XU600AC 259505 Y7-259505 EATON ELECTRIC Undervoltage release, 600VAC
NZM2/3-XU600AC
259505
Y7-259505
EATON - MOELLER
1 Pcs.
Automation > Under voltage coil
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller NZM2/3-XU600AC operates as an undervoltage release module designed to monitor system line parameters and trigger breaker mechanisms whenever voltage levels fall below safe operating limits.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated control supply voltage AC 50 Hz (EF003978): 600 V
- Rated control supply voltage AC 60 Hz (EF003979): 600 V
- Rated control supply voltage DC (EF003980): 0 V
- Voltage type for actuating (EF008242): AC
- Type of electric connection (EF003961): Screw connection
- Number of contacts as normally open contact (EF008256): 0
- Number of contacts as normally closed contact (EF008255): 0
- Number of contacts as change-over contact (EF008257): 0
- Delayed (EF001541): false
- Suitable for power circuit breaker (EF005863): false
- Suitable for off-load switch (EF001543): true
- Suitable for motor safety switch (EF005826): false
- Suitable for overload relay (EF001545): false
More info
▲General specifications
IEC
RoHS conform
CSA (File No. 22086)
UL (File No. E140305)
IEC60947
UL (Category Control Number DIHS)
CE marking
CSA-C22.2 No. 5-09
CSA certified
UL489
UL listed
Product specifications
NZM2(-4), N(S)2(-4)
0.75 mm² - 2.5 mm² (1x) at shunt release with ferrule
18 - 14 AWG (2x) at shunt release
18 - 14 AWG (2x) for undervoltage releases, off-delayed
0.75 mm² - 2.5 mm² (2x) for undervoltage releases, off-delayed with ferrule
18 - 14 AWG (1x) at shunt release
0.75 mm² - 2.5 mm² (1x) for undervoltage releases, off-delayed with ferrule
0.75 mm² - 2.5 mm² (2x) at shunt release with ferrule
1.5 VA (sealing AC)
