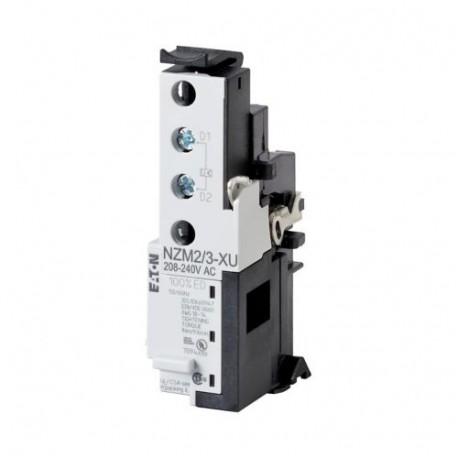

NZM2/3-XU480-525AC 259503 Y7-259503 EATON ELECTRIC Undervoltage release, 480-525VAC
NZM2/3-XU480-525AC
259503
Y7-259503
EATON - MOELLER
1 Pcs.
Automation > Under voltage coil
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller part number NZM2/3-XU480-525AC is an undervoltage release unit intended for industrial electrical control setups. Hardware of this nature functions by continuously supervising line voltage parameters, initiating a rapid breaker trip if the power supply dips below required operational limits to protect connected equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated control supply voltage AC 50 Hz (EF003978): 480 V
- Rated control supply voltage AC 60 Hz (EF003979): 480 V
- Rated control supply voltage DC (EF003980): 0 V
- Voltage type for actuating (EF008242): AC
- Type of electric connection (EF003961): Screw connection
- Number of contacts as normally open contact (EF008256): 0
- Number of contacts as normally closed contact (EF008255): 0
- Number of contacts as change-over contact (EF008257): 0
- Delayed (EF001541): No
- Suitable for power circuit breaker (EF005863): No
- Suitable for off-load switch (EF001543): Yes
- Suitable for motor safety switch (EF005826): No
- Suitable for overload relay (EF001545): No
More info
▲General specifications
UL/CSA
RoHS conform
CSA certified
CSA (Class No. 1437-01)
UL489
CSA-C22.2 No. 5-09
IEC60947
UL listed
CSA (File No. 22086)
UL (File No. E140305)
UL (Category Control Number DIHS)
Product specifications
NZM2(-4), N(S)2(-4)
0.75 mm² - 2.5 mm² (2x) for undervoltage releases, off-delayed with ferrule
0.75 mm² - 2.5 mm² (1x) at shunt release with ferrule
18 - 14 AWG (1x) for undervoltage releases, off-delayed
0.75 mm² - 2.5 mm² (1x) for undervoltage releases, off-delayed with ferrule
18 - 14 AWG (1x) at shunt release
18 - 14 AWG (2x) at shunt release
18 - 14 AWG (2x) for undervoltage releases, off-delayed
1.5 VA (sealing AC)
525 V AC
