EATON - MOELLER +IZMX-UVR48DC +IZMX-UVR48DC 123747 EATON ELECTRIC Undervoltage release 48 VDC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

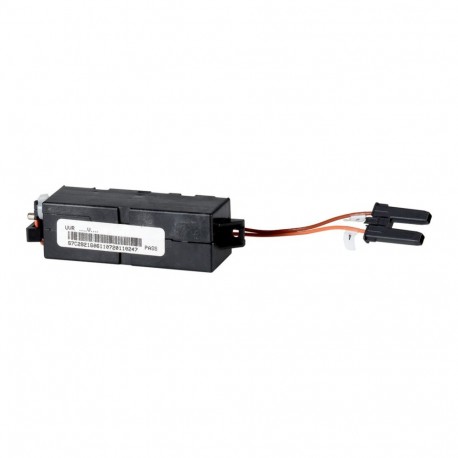

+IZMX-UVR48DC 123747 EATON ELECTRIC Undervoltage release 48 VDC

+IZMX-UVR48DC

123747

EATON - MOELLER

1 Pcs.

Undervoltage release 48 VDC Suitable for remote switching off, can be combined only with an undervoltage release

Automation > Under voltage coil

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Under Undervoltage release;48VDC
Suitable for remote switching off, can be combined only with an undervoltage release
[

Delivery program

Product range
Accessories
Accessories
Remote switching
Accessories
Undervoltage release
Cannot be combined with a second shunt release.
Maximum operating frequency [Actuations/minute]
3
Limited to 3/min due to the high pick-up current for 35 ms.
Please note - the circuit-breaker's switching frequency = 60/h
Rated control voltage [Us]
48 V DC V
Operating range [x US]
0,85 - 1,1 Factor
max. holding current [In]
0.089 A
max. pick-up current (35ms) [In]
16 A
max. continuous power [AC/DC]
5 VA/W
max. pull-in power (35ms) [AC/DC]
850 VA/W
Circuit-breaker total switching time [@ US=100%]
37 ms
For use with
IZMX16..., IZMX40...
INX16..., INX40...
Notes

Can be continuously ON (100% DF)

,

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C
,

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Under voltage coil (EC001022)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Undervoltage trip ([email protected] [AKF015013])
Rated control supply voltage Us at AC 50HZ
0 - 0 V
Rated control supply voltage Us at AC 60HZ
0 - 0 V
Rated control supply voltage Us at DC
48 - 48 V
Voltage type for actuating
DC
Voltage type for actuating
DC
Type of electric connection
Flat plug-in connection
Number of contacts as normally open contact
0
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
0
Delayed
No
Suitable for power circuit breaker
Yes
Suitable for off-load switch
Yes
Suitable for motor safety switch
No
Suitable for overload relay
No
]

ETIM for 123747 Low-voltage industrial controls and switchgear (EC001022)
Feature Name Feature Value
Rated control supply voltage AC 50 Hz (EF003978) 0 V
Rated control supply voltage AC 60 Hz (EF003979) 0 V
Rated control supply voltage DC (EF003980) 48 V
Voltage type for actuating (EF008242) DC
Type of electric connection (EF003961) Flat plug-in connection
Number of contacts as normally open contact (EF008256) 0
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as change-over contact (EF008257) 0
Delayed (EF001541) No
Suitable for power circuit breaker (EF005863) Yes
Suitable for off-load switch (EF001543) Yes
Suitable for motor safety switch (EF005826) No
Suitable for overload relay (EF001545) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
