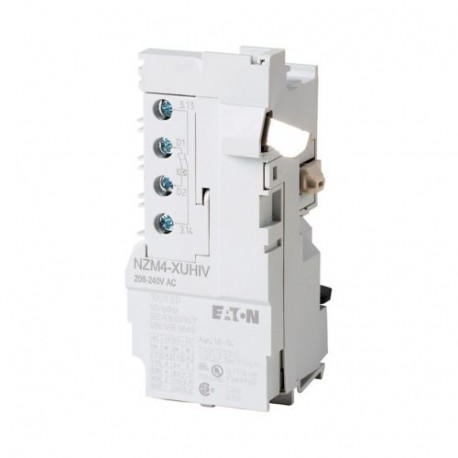

NZM4-XUVHIV 266596 Y7-266596 EATON ELECTRIC Undervoltage release, 2early N/O, for delay unit
NZM4-XUVHIV
266596
Y7-266596
EATON - MOELLER
1 Pcs.
Automation > Under voltage coil
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
NZM4-XUVHIV 266596 Y7-266596 EATON ELECTRIC Undervoltage release, 2early N/O, for delay unit is an undervoltage release produced by Eaton Moeller. This specialized hardware is designed to work alongside delay units in switchgear assemblies, facilitating timed protective disconnections and auxiliary signaling during voltage sags. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated control supply voltage AC 50 Hz (EF003978): 0 V
- Rated control supply voltage AC 60 Hz (EF003979): 0 V
- Rated control supply voltage DC (EF003980): 0 V
- Voltage type for actuating (EF008242): AC
- Type of electric connection (EF003961): Screw connection
- Number of contacts as normally open contact (EF008256): 1
- Number of contacts as normally closed contact (EF008255): 0
- Number of contacts as change-over contact (EF008257): 0
- Delayed (EF001541): Yes
- Suitable for power circuit breaker (EF005863): No
- Suitable for off-load switch (EF001543): Yes
- Suitable for motor safety switch (EF005826): No
- Suitable for overload relay (EF001545): No
More info
▲General specifications
RoHS conform
CSA certified
CSA (Class No. 1437-01)
UL (Category Control Number DIHS)
UL (File No. E140305)
UL listed
CSA-C22.2 No. 5-09
CSA (File No. 22086)
UL489
IEC60947
Product specifications
NZM4(-4)
18 - 14 AWG (1x) at shunt release
18 - 14 AWG (1x) for undervoltage releases, off-delayed
0.75 mm² - 2.5 mm² (1x) for undervoltage releases, off-delayed with ferrule
18 - 14 AWG (2x) for undervoltage releases, off-delayed
0.75 mm² - 2.5 mm² (2x) at shunt release with ferrule
18 - 14 AWG (2x) at shunt release
0.75 mm² - 2.5 mm² (2x) for undervoltage releases, off-delayed with ferrule
