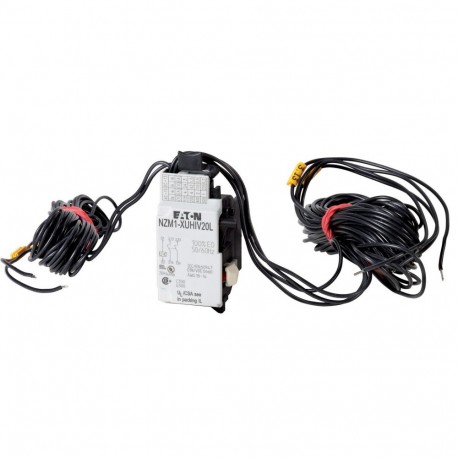

NZM1-XUHIV20KL24DC 284387 Y7-284387 EATON ELECTRIC Undervoltage release, 24VDC +2early N/O
NZM1-XUHIV20KL24DC
284387
Y7-284387
EATON - MOELLER
1 Pcs.
Automation > Under voltage coil
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller NZM1-XUHIV20KL24DC acts as an undervoltage release with integrated auxiliary signaling, built to trip switchgear safely whenever line voltage falls out of specification. Such protection devices are widely implemented in industrial distribution boards to safeguard personnel and machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated control supply voltage AC 50 Hz (EF003978): 0 V
- Rated control supply voltage AC 60 Hz (EF003979): 0 V
- Rated control supply voltage DC (EF003980): 24 V
- Voltage type for actuating (EF008242): DC
- Type of electric connection (EF003961): Screw connection
- Number of contacts as normally open contact (EF008256): 2
- Number of contacts as normally closed contact (EF008255): 0
- Number of contacts as change-over contact (EF008257): 0
- Delayed (EF001541): No
- Suitable for power circuit breaker (EF005863): No
- Suitable for off-load switch (EF001543): Yes
- Suitable for motor safety switch (EF005826): No
- Suitable for overload relay (EF001545): No
More info
▲General specifications
IEC
RoHS conform
CSA-C22.2 No. 5-09
CSA certified
CE marking
UL listed
UL (Category Control Number DIHS)
UL (File No. E140305)
IEC60947
CSA (Class No. 1437-01)
UL489
Product specifications
Auxiliary contact terminals with 3 m of loose connection cables
0.75 mm² - 2.5 mm² (2x) at shunt release with ferrule
18 - 14 AWG (1x) for undervoltage releases, off-delayed
0.75 mm² - 2.5 mm² (1x) at shunt release with ferrule
0.75 mm² - 2.5 mm² (1x) for undervoltage releases, off-delayed with ferrule
18 - 14 AWG (2x) for undervoltage releases, off-delayed
0.75 mm² - 2.5 mm² (2x) for undervoltage releases, off-delayed with ferrule
18 - 14 AWG (1x) at shunt release
1.5 VA (sealing AC)
