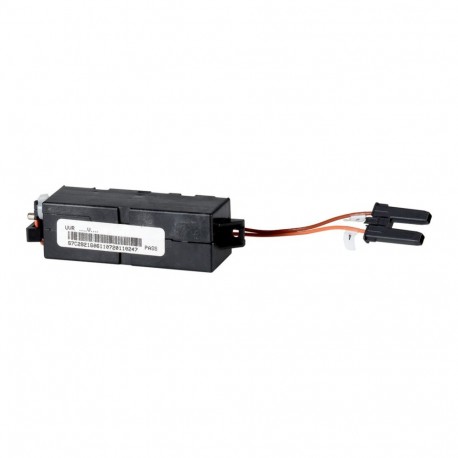

EATON - MOELLER +IZMX-UVR24DC +IZMX-UVR24DC 123743 EATON ELECTRIC Undervoltage release 24 VDC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

+IZMX-UVR24DC 123743 EATON ELECTRIC Undervoltage release 24 VDC

+IZMX-UVR24DC

123743

EATON - MOELLER

1 Pcs.

Undervoltage release 24 VDC Suitable for remote switching off, can be combined only with an undervoltage release

Automation > Under voltage coil

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller undervoltage release provides critical circuit protection by triggering an immediate opening sequence when the control circuit voltage drops below a safe threshold. These internal modules are deployed across industrial frameworks to prevent unintended operations stemming from voltage sags.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage AC 50 Hz (EF003978): 0 V
  • Rated control supply voltage AC 60 Hz (EF003979): 0 V
  • Rated control supply voltage DC (EF003980): 24 V
  • Voltage type for actuating (EF008242): DC
  • Type of electric connection (EF003961): Flat plug-in connection
  • Number of contacts as normally open contact (EF008256): 0
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of contacts as change-over contact (EF008257): 0
  • Delayed (EF001541): No
  • Suitable for power circuit breaker (EF005863): Yes
  • Suitable for off-load switch (EF001543): Yes
  • Suitable for motor safety switch (EF005826): No
  • Suitable for overload relay (EF001545): No

More info

▲
Under Undervoltage release;24 V DC
Suitable for remote switching off, can be combined only with an undervoltage release
[

Delivery program

Product range
Accessories
Accessories
Remote switching
Accessories
Undervoltage release
Cannot be combined with a second shunt release.
Maximum operating frequency [Actuations/minute]
3
Limited to 3/min due to the high pick-up current for 35 ms.
Please note - the circuit-breaker's switching frequency = 60/h
Rated control voltage [Us]
24 V DC V
Operating range [x US]
0,85 - 1,1 Factor
max. holding current [In]
0.18 A
max. pick-up current (35ms) [In]
19 A
max. continuous power [AC/DC]
5 VA/W
max. pull-in power (35ms) [AC/DC]
500 VA/W
Circuit-breaker total switching time [@ US=100%]
37 ms
For use with
IZMX16..., IZMX40...
INX16..., INX40...
Notes

Can be continuously ON (100% DF)

,

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C
,

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Under voltage coil (EC001022)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Undervoltage trip ([email protected] [AKF015013])
Rated control supply voltage Us at AC 50HZ
0 - 0 V
Rated control supply voltage Us at AC 60HZ
0 - 0 V
Rated control supply voltage Us at DC
24 - 24 V
Voltage type for actuating
DC
Voltage type for actuating
DC
Type of electric connection
Flat plug-in connection
Number of contacts as normally open contact
0
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
0
Delayed
No
Suitable for power circuit breaker
Yes
Suitable for off-load switch
Yes
Suitable for motor safety switch
No
Suitable for overload relay
No
]
