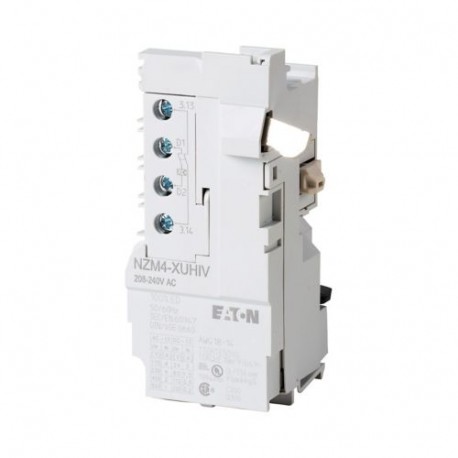

NZM4-XUHIV220-250DC 266236 Y7-266236 EATON ELECTRIC Undervoltage release, 220-250VDC, +2early N/O
NZM4-XUHIV220-250DC
266236
Y7-266236
EATON - MOELLER
1 Pcs.
Automation > Under voltage coil
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
NZM4-XUHIV220-250DC 266236 Y7-266236 EATON ELECTRIC Undervoltage release, 220-250VDC, +2early N/O is an undervoltage release built by Eaton Moeller. Such internal components are routinely integrated into heavy-duty electrical switchgear to protect downstream assets by tripping circuit elements automatically during voltage failures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated control supply voltage AC 50 Hz (EF003978): 0 V
- Rated control supply voltage AC 60 Hz (EF003979): 0 V
- Rated control supply voltage DC (EF003980): 220 V
- Voltage type for actuating (EF008242): AC
- Type of electric connection (EF003961): Screw connection
- Number of contacts as normally open contact (EF008256): 2
- Number of contacts as normally closed contact (EF008255): 0
- Number of contacts as change-over contact (EF008257): 0
- Delayed (EF001541): No
- Suitable for power circuit breaker (EF005863): No
- Suitable for off-load switch (EF001543): Yes
- Suitable for motor safety switch (EF005826): No
- Suitable for overload relay (EF001545): No
More info
▲General specifications
UL/CSA
RoHS conform
UL489
UL listed
UL (Category Control Number DIHS)
CE marking
CSA certified
CSA (File No. 22086)
IEC60947
CSA-C22.2 No. 5-09
UL (File No. E140305)
Product specifications
18 - 14 AWG (1x) for undervoltage releases, off-delayed
18 - 14 AWG (2x) for undervoltage releases, off-delayed
0.75 mm² - 2.5 mm² (1x) for undervoltage releases, off-delayed with ferrule
0.75 mm² - 2.5 mm² (2x) for undervoltage releases, off-delayed with ferrule
18 - 14 AWG (1x) at shunt release
18 - 14 AWG (2x) at shunt release
0.75 mm² - 2.5 mm² (2x) at shunt release with ferrule
3.6 VA (Sealing AC)
250 V DC
