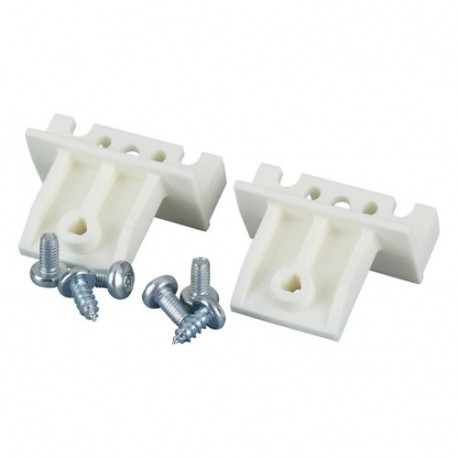

EATON - MOELLER UI-TS UI-TS 144022 Y7-144022 EATON ELECTRIC Insulating Mounting Piece View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UI-TS 144022 Y7-144022 EATON ELECTRIC Insulating Mounting Piece

UI-TS

144022

Y7-144022

EATON - MOELLER

1 Pcs.

Insulating Mounting Piece UI-TS Eaton xEnergy Basic LV systems Low voltage switchgear. Insulated mounting piece The standard flush-mounting EP system is a system for surface mounting factory finished, type-tested switchgear assemblies

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built to provide electrical isolation, this Eaton Moeller insulating mounting piece ensures safe mechanical separation of live components from grounded metallic enclosure structures. Insulating parts are critical for maintaining required clearance distances in power distribution panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Mounting kit
  • Suitable for enclosure building width (EF000326): 0 mm
  • Suitable for enclosure building height (EF009583): 0 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 78 mm
  • Height (EF000040): 63.5 mm
  • Depth (EF000049): 17 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Metal
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 0

More info

▲

General specifications

Product Name
Eaton xEnergy Basic installation component
Catalog Number
144022
Model Code
UI-TS
EAN
4015081405565
Product Length/Depth
17 mm
Product Height
63.5 mm
Product Width
78 mm
Product Weight
0.016 kg
Compliances
RoHS conform

Delivery program

Model
Mounting kit
Color
Gray

Technical data - mechanical

Material
Plastic
Load capacity - max
0 kg
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm

Additional information

RAL-number
0
