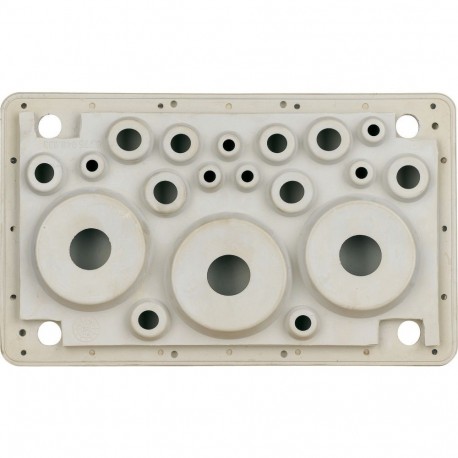

EATON - MOELLER UFK4 UFK4 150664 Y7-150664 EATON ELECTRIC UFK4 Insulating flange Unigate View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UFK4 150664 Y7-150664 EATON ELECTRIC UFK4 Insulating flange Unigate

UFK4

150664

Y7-150664

EATON - MOELLER

1 Pcs.

UFK4 Insulating flange Unigate UFK4 Push-through flange UFK, lead-throughs=6xM16, 1xM20, 4xM25, 5xM32, 3xM50/63, sealing set XBUFK always order 1x separately

Automation > Gland plate for small distribution boards/switchgear cabinets
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller UFK4 150664 Y7-150664 insulating flange unigate are deployed in electrical switchboard assemblies to provide insulated cable entry and mechanical separation between panel sections. These plastic flanges prevent galvanic interaction and support safe conductor routing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Width (EF000008): 140 mm
  • Height (EF000040): 28 mm
  • Material (EF002169): Plastic
  • Surface protection (EF000139): Untreated
  • Pre-stamping (EF001039): Yes
  • Number of connector holes (EF005554): 19
  • Suitable for nominal thread metric/PG (EF012565): 16

More info

▲
EL-Nummer (Norway)
2455358
Insulating flange Unigate
Push-through flange UFK, lead-throughs=6xM16, 1xM20, 4xM25, 5xM32, 3xM50/63, sealing set XBUFK always order 1x separately

Technical data ETIM 7.0

Distribution boards (EG000023) / Gland plate for small distribution boards/switchgear cabinets (EC000211)
Electric engineering, automation, process control engineering / Electrical installation, device / Electrical distribution system (incl. small distribution board) / Gland plate for small distribution boards/switchgear cabinets ([email protected] [ADI315007])
Model
Other
Type
Width
140 mm
Height
28 mm
Depth
234 mm
Material
Plastic
Surface protection
Untreated
Degree of protection (NEMA)
Pre-stamping
Yes
Number of connector holes
Thread type
Suitable for nominal thread metric/PG

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
